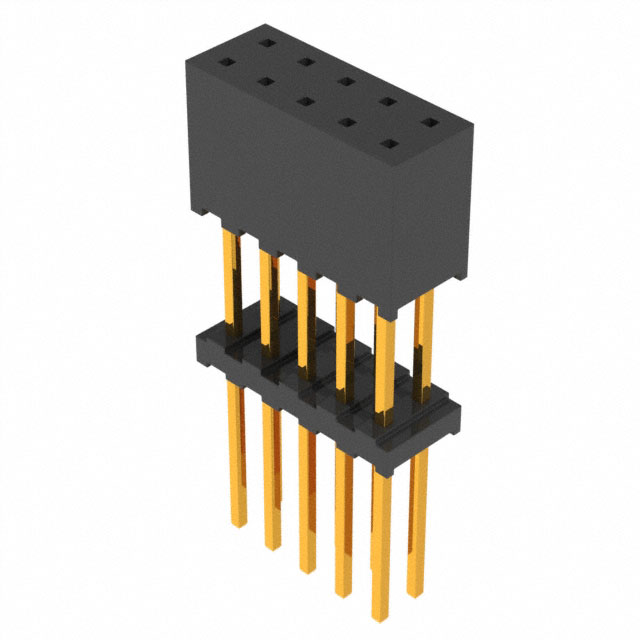

ESQT-105-02-G-D-525
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ESQT-105-02-G-D-525 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ESQT-105-02-G-D-525 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ESQT-105-02-G-D-525 |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN SOCKET 2MM 10POS DUAL ROW |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $1.671 | $1.413 | $1.092 | $0.899 | $0.835 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | ESQT-105-02-G-D-525 | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN SOCKET 2MM 10POS DUAL ROW | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 45843 pcs | Data sheet | ESQT Double Row, Thru Hole FootprintESQT Series DrawingESQT Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Series | ESQT | Row Spacing - Mating | 0.079" (2.00mm) |
| Pitch - Mating | 0.079" (2.00mm) | Packaging | Bulk |
| Other Names | ESQT-105-02-G-D-525-ND SAM12413 |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 10 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 3 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.525" (13.34mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | 10 Position Elevated Socket Connector 0.079" (2.00mm) Through Hole Gold |
| Current Rating | 4.5A per Contact | Contact Type | Forked |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.325" (8.25mm) | Contact Finish Thickness - Post | 3.00µin (0.076µm) |
| Contact Finish Thickness - Mating | 20.0µin (0.51µm) | Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold | Connector Type | Elevated Socket |
| Applications | - |
