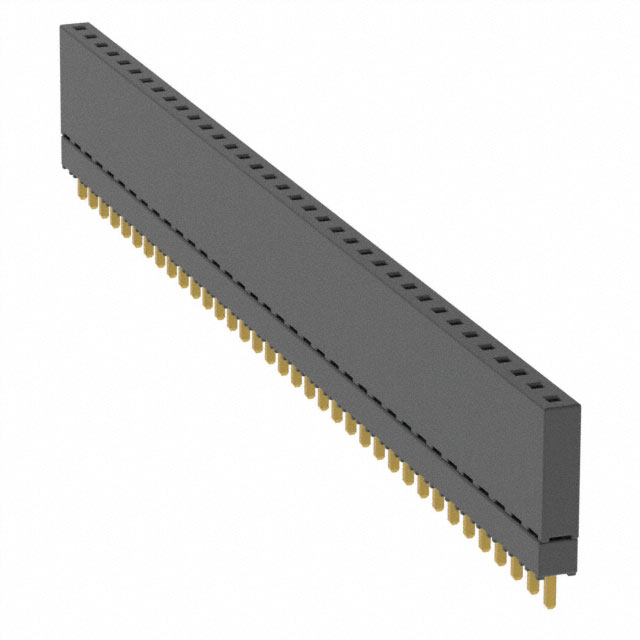

ESQ-136-12-G-S
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ESQ-136-12-G-S with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ESQ-136-12-G-S with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ESQ-136-12-G-S |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN RCPT 36POS .100" GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 12 pcs | |||
|---|---|---|---|---|---|
| $2.152 | $1.964 | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | ESQ-136-12-G-S | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN RCPT 36POS .100" GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 19531 pcs | Data sheet | ESQ(-S,D,T Rows) FootprintESQ, ESW Series DatasheetESQ Series Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 550VAC |
| Termination | Solder | Style | Board to Board |
| Series | ESQ | Row Spacing - Mating | - |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Tube |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 36 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 3 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP) | Insulation Height | 0.435" (11.05mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | 36 Position Elevated Socket Connector 0.100" (2.54mm) Through Hole Gold | Current Rating | 5.7A per Contact |
| Contact Type | Forked | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.090" (2.29mm) |
| Contact Finish Thickness - Post | 3.00µin (0.076µm) | Contact Finish Thickness - Mating | 20.0µin (0.51µm) |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Elevated Socket | Applications | - |
