ESQ-120-24-G-D

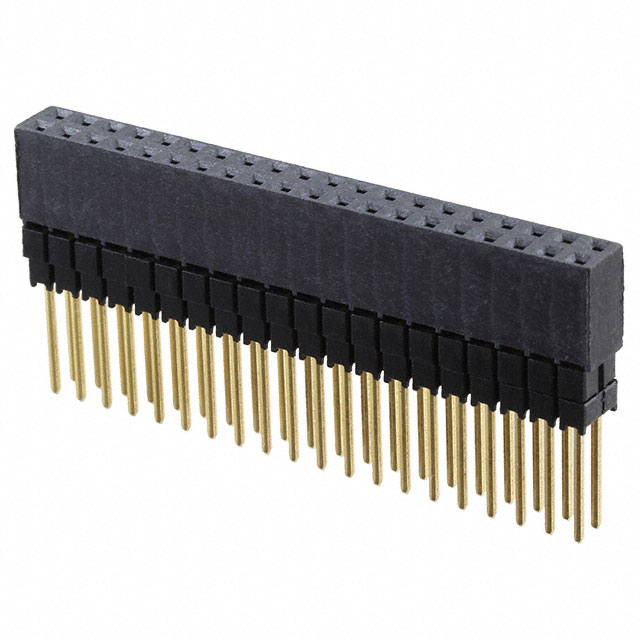

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ESQ-120-24-G-D with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ESQ-120-24-G-D with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ESQ-120-24-G-D |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | ELEVATED SKT STRIPS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 11 pcs | 110 pcs | 506 pcs | 1001 pcs |
|---|---|---|---|---|---|
| $2.762 | $2.555 | $2.14 | $1.795 | $1.726 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | ESQ-120-24-G-D | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | ELEVATED SKT STRIPS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 19845 pcs | Data sheet | ESQ, ESW Series DatasheetESQ Series Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 550VAC |
| Termination | Solder | Style | Board to Board |
| Series | ESQ | Row Spacing - Mating | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Tube |
| Other Names | SAM9316 | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 40 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 3 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.535" (13.60mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | 40 Position Elevated Socket Connector Through Hole |
| Current Rating | 5.7A per Contact | Contact Type | Forked |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.380" (9.65mm) | Contact Finish Thickness - Post | 3.00µin (0.076µm) |
| Contact Finish Thickness - Mating | 20.0µin (0.51µm) | Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold | Connector Type | Elevated Socket |
| Applications | - |
