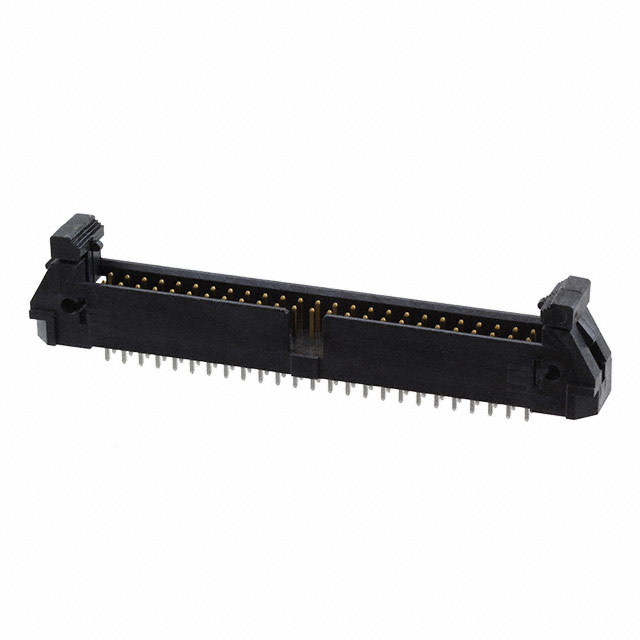

EJH-125-01-F-D-TH
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EJH-125-01-F-D-TH with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy EJH-125-01-F-D-TH with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | EJH-125-01-F-D-TH |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | .100 X .100 EJECTOR HEADER ASSEM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $2.862 | $2.743 | $2.266 | $1.908 | $1.67 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | EJH-125-01-F-D-TH | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | .100 X .100 EJECTOR HEADER ASSEM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 20123 pcs | Data sheet | EJH Series DatasheetEJH-1xx-xx-xx-D-xx-xx-xx Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | EJH |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | EJH-125-01-F-D-TH-ND SAM11064 |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 50 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 3 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.500" (12.70mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Keying Slot |
| Fastening Type | Latch Lock/Eject Hooks | Detailed Description | Connector Header Through Hole 50 position 0.100" (2.54mm) |
| Current Rating | 3A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.120" (3.05mm) | Contact Length - Mating | 0.225" (5.72mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 3.00µin (0.076µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
