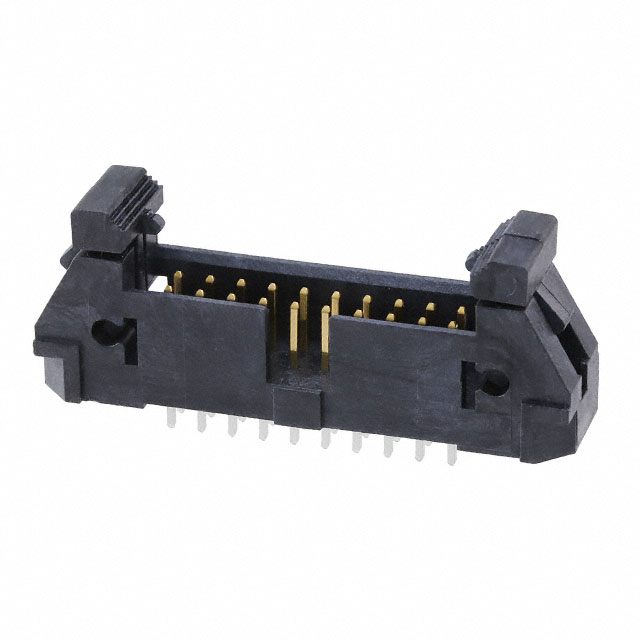

EJH-110-01-F-D-TH
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EJH-110-01-F-D-TH with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy EJH-110-01-F-D-TH with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | EJH-110-01-F-D-TH |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | .100 X .100 EJECTOR HEADER ASSEM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 12 pcs | 108 pcs | 504 pcs | 1008 pcs |
|---|---|---|---|---|---|
| $1.61 | $1.544 | $1.287 | $1.094 | $0.933 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | EJH-110-01-F-D-TH | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | .100 X .100 EJECTOR HEADER ASSEM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 41481 pcs | Data sheet | EJH Series DatasheetEJH-1xx-xx-xx-D-xx-xx-xx Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | EJH |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | EJH-110-01-F-D-TH-ND SAM9071 |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 20 | Mounting Type | Through Hole |
| Material Flammability Rating | - | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 3 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP) | Insulation Height | 0.500" (12.70mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Keying Slot | Fastening Type | Latch Lock/Eject Hooks |
| Detailed Description | Connector Header Through Hole 20 position 0.100" (2.54mm) | Current Rating | 3A |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.120" (3.05mm) |
| Contact Length - Mating | 0.225" (5.72mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 3.00µin (0.076µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
