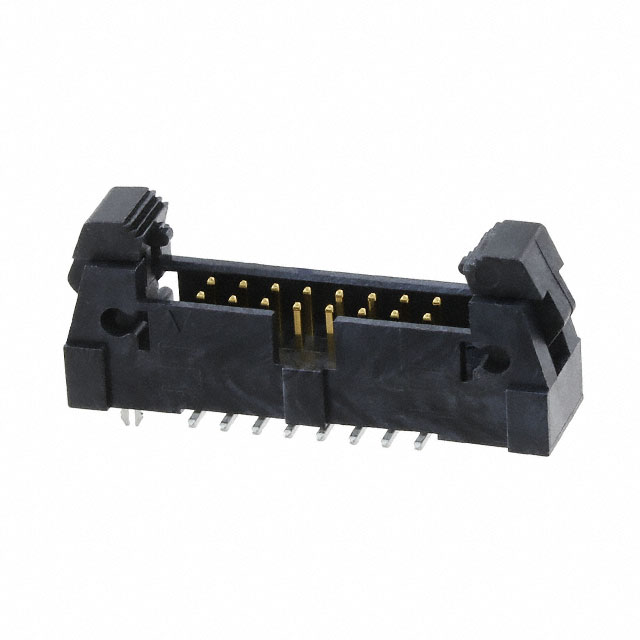

EHT-108-01-S-D-SM-LC
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EHT-108-01-S-D-SM-LC with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy EHT-108-01-S-D-SM-LC with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | EHT-108-01-S-D-SM-LC |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | 2MM EJECTOR HDR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 18 pcs | 108 pcs | 504 pcs | 1008 pcs |
|---|---|---|---|---|---|
| $3.762 | $3.599 | $3.026 | $2.536 | $2.241 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | EHT-108-01-S-D-SM-LC | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | 2MM EJECTOR HDR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 16103 pcs | Data sheet | EHT,EC2 Series DatasheetEHT-1xx-01-xx-D-xx-xx-x-xx-xx Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | EHT |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | SAM9276 | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 16 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 3 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.370" (9.40mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Lock, Keying Slot |
| Fastening Type | Latch Lock/Eject Hooks | Detailed Description | Connector Header Surface Mount 16 position 0.079" (2.00mm) |
| Current Rating | 3A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Length - Mating | 0.120" (3.05mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
