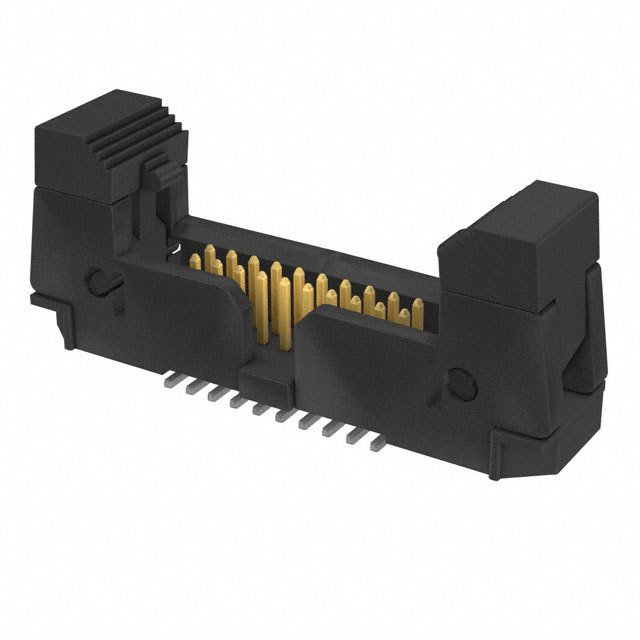

EHF-110-01-F-D-SM-K-TR
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EHF-110-01-F-D-SM-K-TR with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy EHF-110-01-F-D-SM-K-TR with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | EHF-110-01-F-D-SM-K-TR |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | .050 EJECTOR HEADER ASSEMBLY |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 125 pcs | ||||
|---|---|---|---|---|---|
| $1.316 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | EHF-110-01-F-D-SM-K-TR | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | .050 EJECTOR HEADER ASSEMBLY | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 25888 pcs | Data sheet | EHF FootprintSHF,ESHF,EHF,ECF DatasheetEHF-1xx-01-xx-D-xx-xx-xx Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | EHF |
| Row Spacing - Mating | 0.050" (1.27mm) | Pitch - Mating | 0.050" (1.27mm) |
| Packaging | Tape & Reel (TR) | Overall Contact Length | - |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 20 |
| Mounting Type | Surface Mount | Material Flammability Rating | - |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled | Insulation Height | 0.325" (8.25mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Keying Slot, Pick and Place | Fastening Type | Latch Lock/Eject Hooks |
| Detailed Description | Connector Header Surface Mount 20 position 0.050" (1.27mm) | Current Rating | 1.75A |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | - |
| Contact Length - Mating | 0.120" (3.05mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 3.00µin (0.076µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
