EHF-108-01-S-D-SM-LC

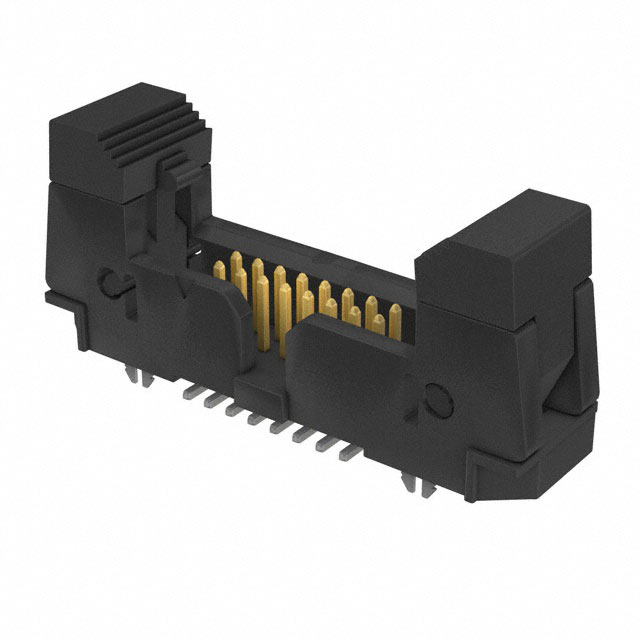

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EHF-108-01-S-D-SM-LC with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy EHF-108-01-S-D-SM-LC with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | EHF-108-01-S-D-SM-LC |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | .050 EJECTOR HEADER ASSEMBLY |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $2.617 | |||||
- Product parameter
Product parameter
| Part Number | EHF-108-01-S-D-SM-LC | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | .050 EJECTOR HEADER ASSEMBLY | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 13489 pcs | Data sheet | |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | EHF |
| Row Spacing - Mating | 0.050" (1.27mm) | Pitch - Mating | 0.050" (1.27mm) |
| Packaging | Tube | Overall Contact Length | - |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 16 |
| Mounting Type | Surface Mount | Material Flammability Rating | - |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled | Insulation Height | 0.325" (8.25mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Board Lock, Keying Slot | Fastening Type | Latch Lock/Eject Hooks |
| Detailed Description | Connector Header Surface Mount 16 position 0.050" (1.27mm) | Current Rating | 1.75A |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | - |
| Contact Length - Mating | 0.120" (3.05mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
