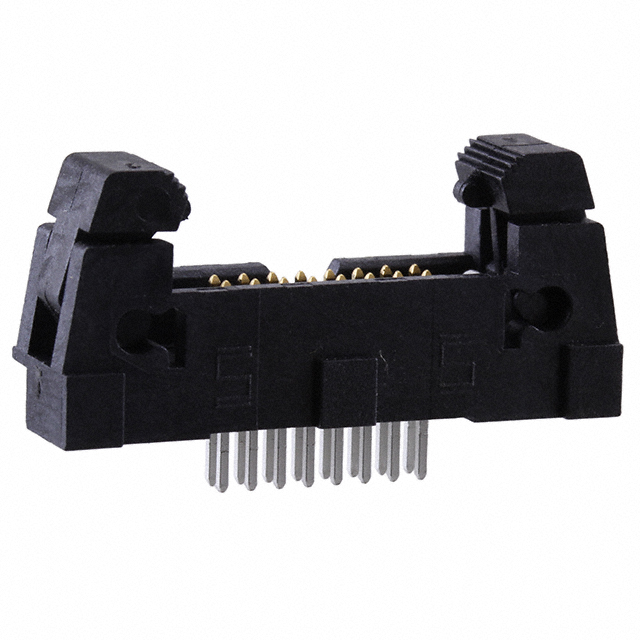

EHF-108-01-F-D
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EHF-108-01-F-D with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy EHF-108-01-F-D with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | EHF-108-01-F-D |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | .050 EJECTOR HDR ASSY |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 23 pcs | 115 pcs | ||
|---|---|---|---|---|---|
| $1.183 | $1.134 | $0.945 | |||
| 506 pcs | 1012 pcs | 5014 pcs | |||
| $0.803 | $0.685 | $0.614 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | EHF-108-01-F-D | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | .050 EJECTOR HDR ASSY | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 51933 pcs | Data sheet | EHF FootprintSHF,ESHF,EHF,ECF DatasheetEHF-1xx-01-xx-D-xx-xx-xx Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | EHF |
| Row Spacing - Mating | 0.050" (1.27mm) | Pitch - Mating | 0.050" (1.27mm) |
| Packaging | Tube | Overall Contact Length | 0.350" (8.89mm) |
| Other Names | SAM9265 | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 16 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 3 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Insulation Height | 0.325" (8.25mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Keying Slot |
| Fastening Type | Latch Lock/Eject Hooks | Detailed Description | Connector Header Through Hole 16 position 0.050" (1.27mm) |
| Current Rating | 1.75A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.107" (2.71mm) | Contact Length - Mating | 0.120" (3.05mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 3.00µin (0.076µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
