DW-08-12-G-D-665

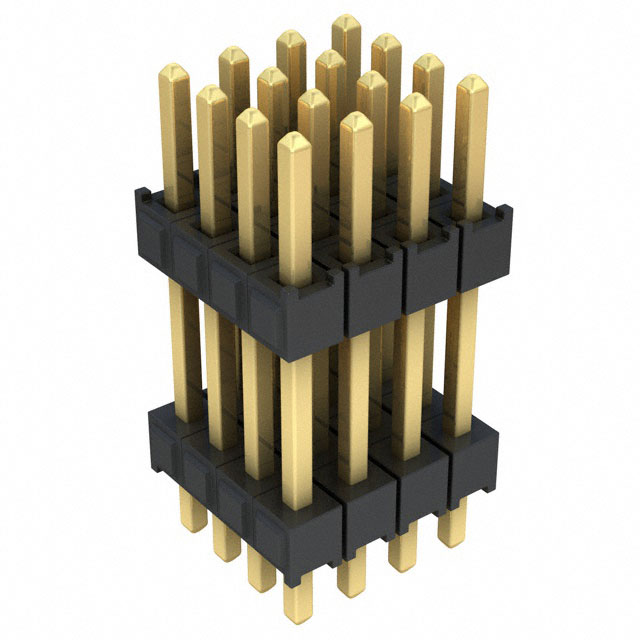

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DW-08-12-G-D-665 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DW-08-12-G-D-665 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DW-08-12-G-D-665 |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN HEADER 16POS DUAL 2.54MM AU |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $0.888 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | DW-08-12-G-D-665 | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN HEADER 16POS DUAL 2.54MM AU | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 35141 pcs | Data sheet | DW/EW/ZW Drawing Sheet 1DW/EW/HW/ZW (Double) Thru Hole FootprintDW/EW/ZW Drawing Sheet 2DW,EW,ZW,HW Series Datasheet |
| Category | Connectors, Interconnects | Termination | Solder |
| Series | Flex Stack, DW | Row Spacing | 0.100" (2.54mm) |
| Pitch | 0.100" (2.54mm) | Packaging | Tube |
| Other Names | Q3426146 | Number of Rows | 2 |
| Number of Positions | 16 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 3 Weeks |
| Length - Tail | 0.110" (2.794mm) | Length - Stack Height | 0.665" (16.891mm) |
| Length - Post (Mating) | 0.255" (6.477mm) | Length - Overall Pin | 1.030" (26.162mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Detailed Description | 16 Position Header Spacer Connector 0.100" (2.54mm) Gold Through Hole |
| Contact Finish Thickness - Post (Mating) | 10.0µin (0.25µm) | Contact Finish - Post (Mating) | Gold |
| Color | Black |
