DPAM-15-07.0-H-3-2-A

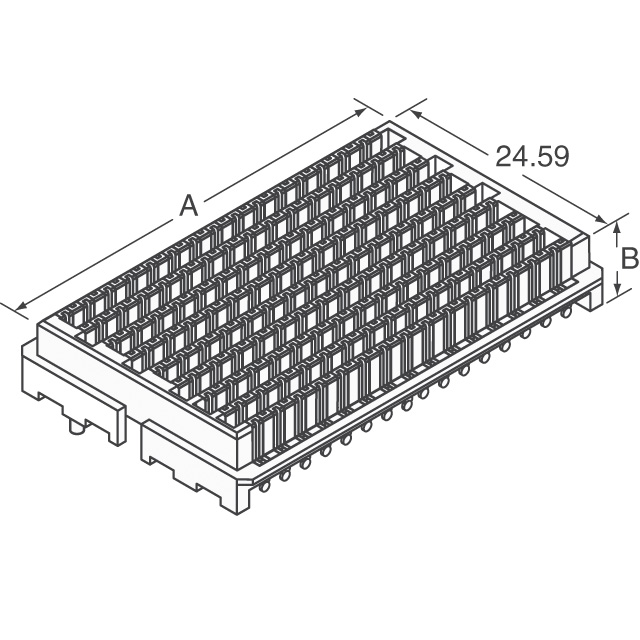

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DPAM-15-07.0-H-3-2-A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DPAM-15-07.0-H-3-2-A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DPAM-15-07.0-H-3-2-A |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN ARRAY DIFF MALE 3X15PAIR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | DPAM-15-07.0-H-3-2-A | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN ARRAY DIFF MALE 3X15PAIR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5845 pcs | Data sheet | DPAM, DPAF DatasheetDPAM Surface Mount FootprintDPAM-xx-07.0-x-x-x-xx Drawing |
| Category | Connectors, Interconnects | Series | DP Array® DPAM |
| Pitch | 0.085" (2.16mm) | Packaging | Tray |
| Other Names | SAM8043 | Number of Rows | 3 |
| Number of Positions | 78 Signal (39 Pair) | Mounting Type | Surface Mount |
| Mated Stacking Heights | 10mm | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Above Board | 0.262" (6.66mm) | Features | Board Guide |
| Detailed Description | 78 Signal (39 Pair) Position Connector Differential Pair Array, Male Surface Mount Gold | Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Finish | Gold | Connector Type | Differential Pair Array, Male |
