DPAF-23-03.0-H-8-2-A

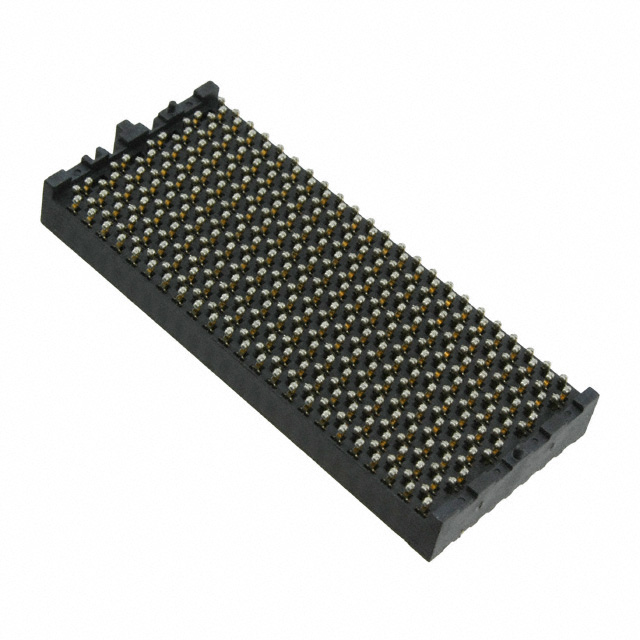

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DPAF-23-03.0-H-8-2-A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DPAF-23-03.0-H-8-2-A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DPAF-23-03.0-H-8-2-A |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN ARRAY DIFF FEMALE 8X23PAIR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | DPAF-23-03.0-H-8-2-A | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN ARRAY DIFF FEMALE 8X23PAIR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5732 pcs | Data sheet | DPAF Surface Mount FootprintDPAF-xx-03.0-H DrawingDPAF-xx-03.0-H Datasheet |
| Category | Connectors, Interconnects | Series | DP Array® DPAF |
| Pitch | 0.085" (2.16mm) | Packaging | Tray |
| Other Names | SAM8037 | Number of Rows | 8 |
| Number of Positions | 336 Signal (168 Pair) | Mounting Type | Surface Mount |
| Mated Stacking Heights | 10mm, 14mm, 17mm | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Above Board | 0.254" (6.45mm) | Features | Board Guide |
| Detailed Description | 336 Signal (168 Pair) Position Connector Differential Pair Array, Female Surface Mount Gold | Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Finish | Gold | Connector Type | Differential Pair Array, Female |
