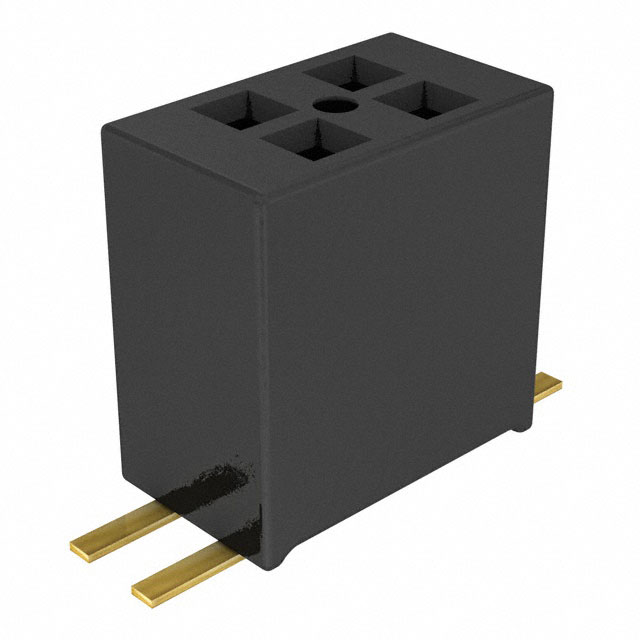

CLE-102-01-G-DV
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CLE-102-01-G-DV with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CLE-102-01-G-DV with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CLE-102-01-G-DV |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN RCPT 4POS .8MM DL GOLD SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $2.142 | $1.856 | $1.57 | $1.249 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $1.017 | $0.928 | $0.892 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | CLE-102-01-G-DV | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN RCPT 4POS .8MM DL GOLD SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 40498 pcs | Data sheet | CLE Series DrawingCLE Series DatasheetCLE Vertical/Pass Through Footprint |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Series | CLE | Row Spacing - Mating | 0.047" (1.20mm) |
| Pitch - Mating | 0.031" (0.80mm) | Packaging | Bulk |
| Other Names | SAM1142-02 | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 4 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP) | Insulation Height | 0.130" (3.30mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | 4 Position Receptacle, Pass Through Connector 0.031" (0.80mm) Surface Mount Gold | Current Rating | 2.7A per Contact |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Beryllium Copper | Contact Length - Post | - |
| Contact Finish Thickness - Post | 10.0µin (0.25µm) | Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Receptacle, Pass Through | Applications | - |
