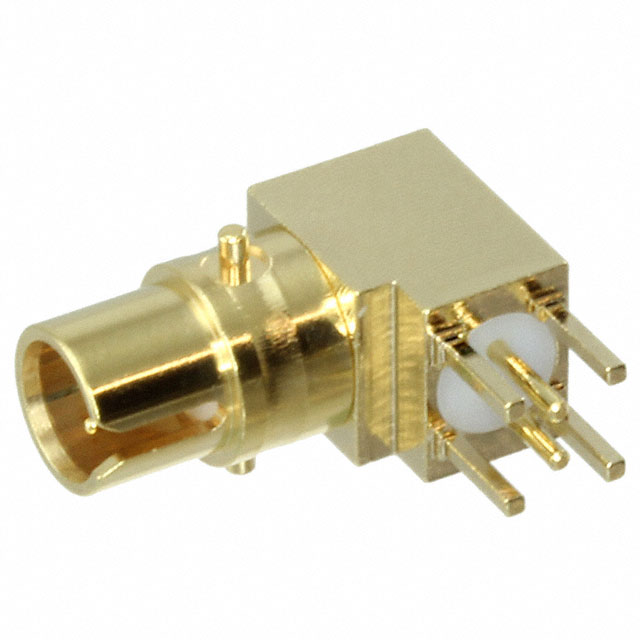

CJT-T-P-HH-RA-TH1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CJT-T-P-HH-RA-TH1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CJT-T-P-HH-RA-TH1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CJT-T-P-HH-RA-TH1 |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN TWIN BNC JACK RA 100OHM PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 5 pcs | 10 pcs | ||
|---|---|---|---|---|---|
| $20.752 | $16.979 | $13.206 | |||
| 25 pcs | 50 pcs | 100 pcs | |||
| $11.319 | $10.565 | $9.81 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | CJT-T-P-HH-RA-TH1 | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN TWIN BNC JACK RA 100OHM PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3355 pcs | Data sheet | CJT-T-P-xx-RA-TH1 DrawingCJT, C28S Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 200V |
| Shield Termination | Solder | Series | - |
| Packaging | Tray | Other Names | SAM9215 |
| Operating Temperature | -20°C ~ 105°C | Number of Ports | 1 |
| Mounting Type | Through Hole, Right Angle | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss | - |
| Ingress Protection | - | Includes | - |
| Impedance | 100 Ohm | Housing Color | Gold |
| Frequency - Max | 4GHz | Features | - |
| Fastening Type | Bayonet Lock | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Detailed Description | BNC, Twinaxial Connector Jack, Male Pin 100 Ohm Through Hole, Right Angle Solder | Contact Termination | Solder |
| Connector Type | Jack, Male Pin | Connector Style | BNC, Twinaxial |
| Center Contact Plating | Gold | Center Contact Material | Phosphor Bronze |
| Cable Group | - | Body Material | Brass |
| Body Finish | Gold |
