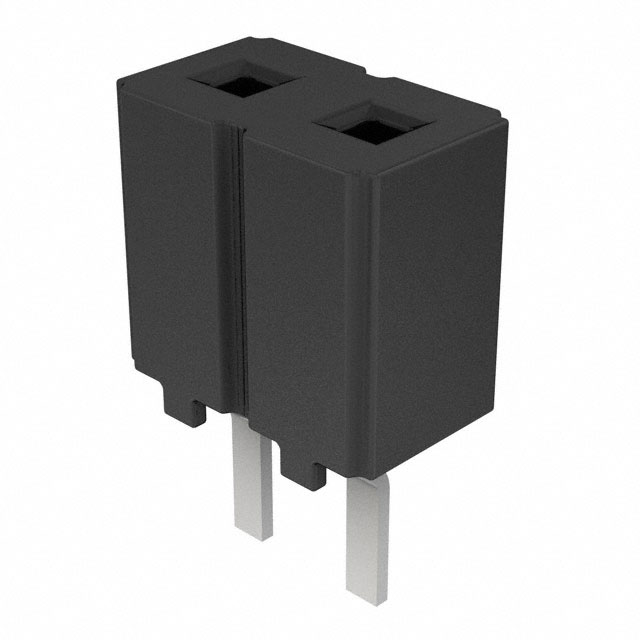

CES-102-01-S-S
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CES-102-01-S-S with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CES-102-01-S-S with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CES-102-01-S-S |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN RCPT 2POS .100" SNGL GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.715 | $0.638 | $0.526 | $0.415 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.357 | $0.325 | $0.313 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | CES-102-01-S-S | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN RCPT 2POS .100" SNGL GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 62173 pcs | Data sheet | SLW, CES Series DatasheetCES Single Row, Through Hole FootprintCES-1xx-xx-x-S-xx Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Series | CES | Row Spacing - Mating | - |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Bulk |
| Other Names | SAM1085-02 | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 2 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polybutylene Terephthalate (PBT) | Insulation Height | 0.200" (5.08mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | 2 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold | Current Rating | - |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.128" (3.25mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | - |
