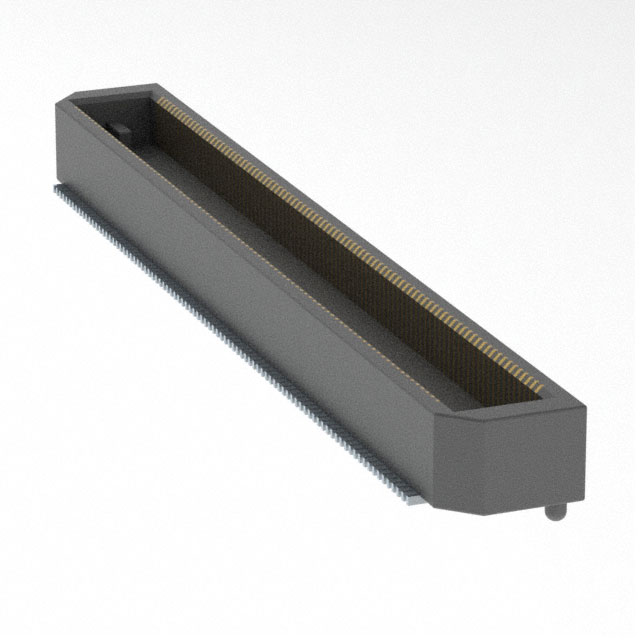

BTH-090-01-F-D-A
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy BTH-090-01-F-D-A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy BTH-090-01-F-D-A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | BTH-090-01-F-D-A |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | .5MM DOUBLE ROW TERMINAL ASSEMBL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.958 | $2.736 | $2.588 | $2.455 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.293 | $1.997 | $1.923 | $1.849 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | BTH-090-01-F-D-A | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | .5MM DOUBLE ROW TERMINAL ASSEMBL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 21071 pcs | Data sheet | BTH Series DrawingBTH Surface Mount FootprintBTH,BSH Series Datasheet |
| Category | Connectors, Interconnects | Series | BTH |
| Pitch | 0.020" (0.50mm) | Packaging | Tube |
| Other Names | BTH-090-01-F-D-A-ND SAM10937 |
Number of Rows | 2 |
| Number of Positions | 180 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mated Stacking Heights | 5mm |
| Manufacturer Standard Lead Time | 3 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Above Board | 0.168" (4.27mm) | Features | Board Guide |
| Detailed Description | 180 Position Connector Header, Outer Shroud Contacts Surface Mount Gold | Contact Finish Thickness | 3.00µin (0.076µm) |
| Contact Finish | Gold | Connector Type | Header, Outer Shroud Contacts |
