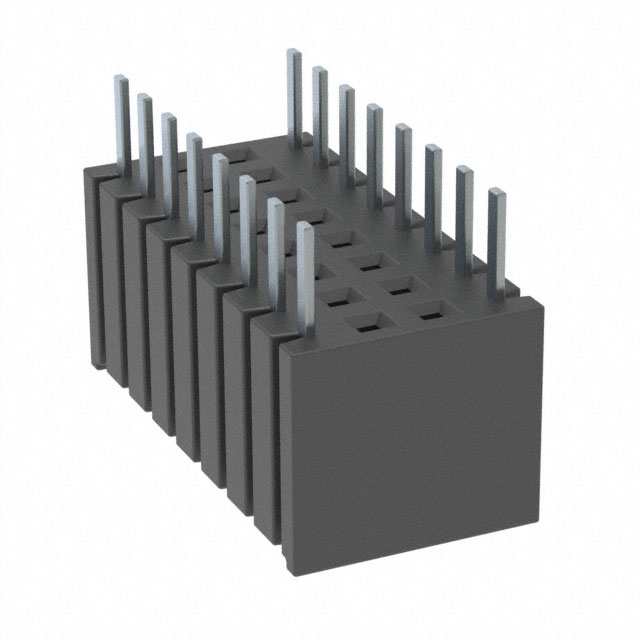

BSW-108-04-T-D
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy BSW-108-04-T-D with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy BSW-108-04-T-D with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | BSW-108-04-T-D |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | BOTTOM MOUNT STRIPS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.623 | $0.564 | $0.484 | $0.403 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.346 | $0.306 | $0.299 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | BSW-108-04-T-D | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | BOTTOM MOUNT STRIPS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 76392 pcs | Data sheet | BSW Series DatasheetBSW-1yy-y4-y-y-y Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Series | BSW | Row Spacing - Mating | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Bulk |
| Other Names | BSW-108-04-T-D-ND SAM10929 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 16 | Mounting Type | Through Hole, Bottom Mount |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 3 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyethylene Terephthalate (PET), Glass Filled | Insulation Height | 0.350" (8.89mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | 16 Position Receptacle, Breakaway Connector Through Hole, Bottom Mount | Current Rating | - |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.165" (4.19mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Receptacle, Breakaway | Applications | - |
