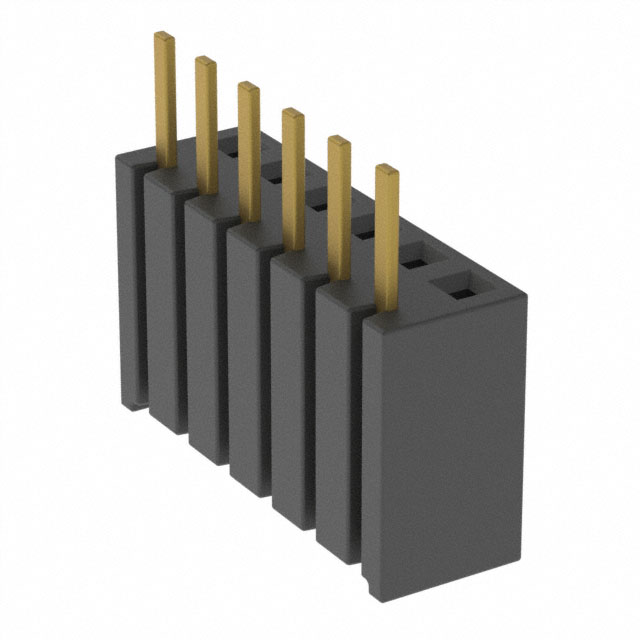

BSW-106-04-G-S
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy BSW-106-04-G-S with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy BSW-106-04-G-S with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | BSW-106-04-G-S |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | BOTTOM MOUNT STRIPS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.504 | $0.456 | $0.391 | $0.326 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.279 | $0.248 | $0.242 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | BSW-106-04-G-S | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | BOTTOM MOUNT STRIPS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 85915 pcs | Data sheet | BSW Series DatasheetBSW-1yy-y4-y-y-y Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Series | BSW | Row Spacing - Mating | - |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Bulk |
| Other Names | SAM9188 | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 6 | Mounting Type | Through Hole, Bottom Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 3 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyethylene Terephthalate (PET), Glass Filled |
| Insulation Height | 0.350" (8.89mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | 6 Position Receptacle, Breakaway Connector Through Hole, Bottom Mount |
| Current Rating | - | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.170" (4.32mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 20.0µin (0.51µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Receptacle, Breakaway |
| Applications | - |
