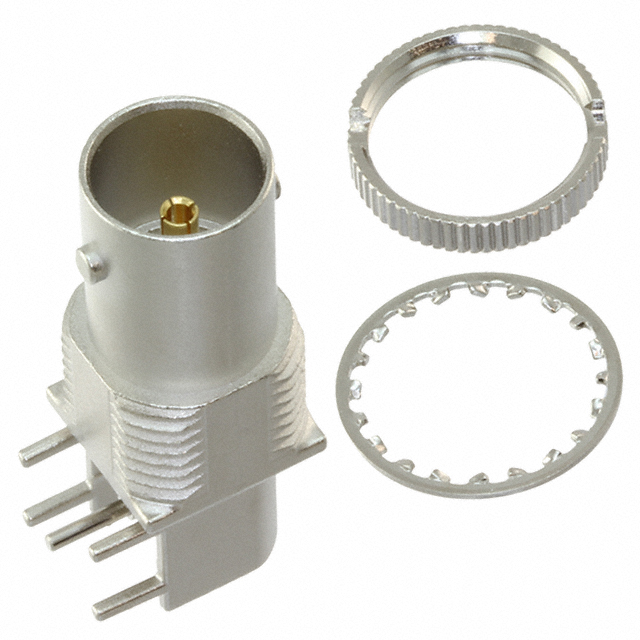

BNC7T-J-P-HN-RA-BH2D
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy BNC7T-J-P-HN-RA-BH2D with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy BNC7T-J-P-HN-RA-BH2D with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | BNC7T-J-P-HN-RA-BH2D |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN BNC JACK R/A 75 OHM PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.706 | $2.593 | $2.368 | $2.255 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.142 | $1.917 | $1.804 | $1.578 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | BNC7T-J-P-HN-RA-BH2D | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN BNC JACK R/A 75 OHM PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 21403 pcs | Data sheet | BNC7T-J-P-xx-RA-BH2D Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 500V |
| Shield Termination | Solder | Series | TRUE75™ BNC7T |
| Packaging | - | Other Names | BNC7T-J-P-HN-RA-BH2D-ND SAM12456 |
| Operating Temperature | -65°C ~ 125°C | Number of Ports | 1 |
| Mounting Type | Panel Mount, Through Hole, Right Angle | Mounting Feature | Bulkhead - Front Side Nut |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | - |
| Manufacturer Standard Lead Time | 3 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Ingress Protection | - |
| Includes | 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut | Impedance | 75 Ohm |
| Housing Color | Silver | Frequency - Max | 12GHz |
| Features | - | Fastening Type | Bayonet Lock |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Detailed Description | BNC Connector Jack, Female Socket 75 Ohm Panel Mount, Through Hole, Right Angle Solder |
| Contact Termination | Solder | Connector Type | Jack, Female Socket |
| Connector Style | BNC | Center Contact Plating | Gold |
| Center Contact Material | Copper Alloy | Cable Group | - |
| Body Material | Brass | Body Finish | Nickel |
