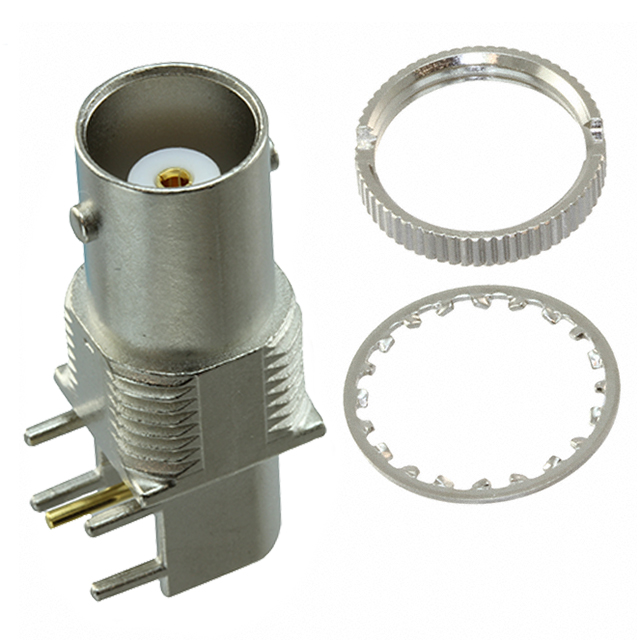

BNC5-J-P-GN-RA-BH2D
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy BNC5-J-P-GN-RA-BH2D with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy BNC5-J-P-GN-RA-BH2D with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | BNC5-J-P-GN-RA-BH2D |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN BNC JACK R/A 50 OHM PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 36 pcs | 72 pcs | |
|---|---|---|---|---|---|
| $2.991 | $2.859 | $2.599 | $2.469 | ||
| 108 pcs | 252 pcs | 504 pcs | 1008 pcs | ||
| $2.404 | $2.144 | $2.014 | $1.781 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | BNC5-J-P-GN-RA-BH2D | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN BNC JACK R/A 50 OHM PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 21289 pcs | Data sheet | BNC5-J-P-GN-RA-BH2D Drawing |
| Category | Connectors, Interconnects | Shield Termination | Solder |
| Series | - | Packaging | Tray |
| Other Names | SAM9177 | Operating Temperature | -65°C ~ 125°C |
| Number of Ports | 1 | Mounting Type | Panel Mount, Through Hole, Right Angle |
| Mounting Feature | Bulkhead - Front Side Nut | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | - | Manufacturer Standard Lead Time | 3 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss | - |
| Ingress Protection | - | Includes | 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut |
| Impedance | 50 Ohm | Housing Color | Silver |
| Frequency - Max | 4GHz | Features | - |
| Fastening Type | Bayonet Lock | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Detailed Description | BNC Connector Jack, Female Socket 50 Ohm Panel Mount, Through Hole, Right Angle Solder | Contact Termination | Solder |
| Connector Type | Jack, Female Socket | Connector Style | BNC |
| Center Contact Plating | Gold | Center Contact Material | Phosphor Bronze |
| Cable Group | - | Body Material | Zinc |
| Body Finish | Nickel |
