BBL-127-G-F

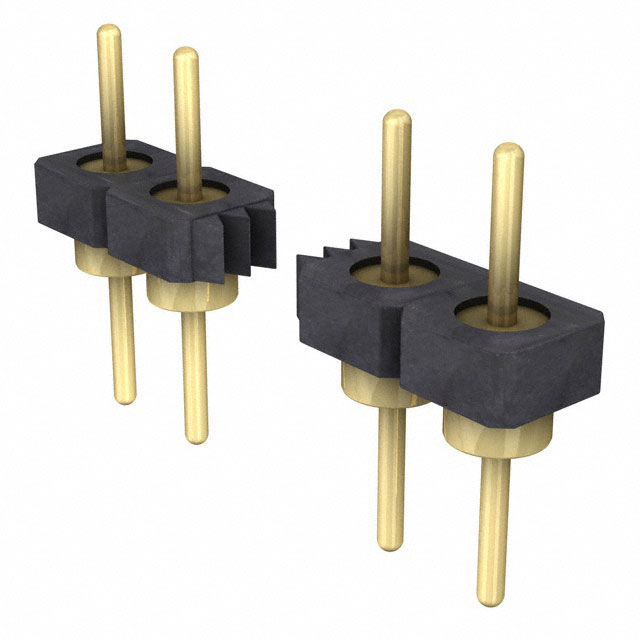

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy BBL-127-G-F with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy BBL-127-G-F with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | BBL-127-G-F |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN HEADR LOPRO 27POS .100 GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $3.921 | $3.509 | $2.89 | $2.284 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $1.961 | $1.789 | $1.72 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | BBL-127-G-F | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN HEADR LOPRO 27POS .100 GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 19513 pcs | Data sheet | BBx, BDL, BHS Series DatasheetBxx-1xx-x-x-x DrawingBBL Through Hole Footprint |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Shrouding | Unshrouded | Series | BBL |
| Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | 0.332" (8.43mm) |
| Other Names | SAM1001-27 | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 27 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP) | Insulation Height | 0.085" (2.15mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole 27 position 0.100" (2.54mm) | Current Rating | - |
| Contact Type | Male Pin | Contact Shape | Circular |
| Contact Material | - | Contact Length - Post | 0.125" (3.18mm) |
| Contact Length - Mating | 0.122" (3.10mm) | Contact Finish Thickness - Post | 50.0µin (1.27µm) |
| Contact Finish Thickness - Mating | 20.0µin (0.51µm) | Contact Finish - Post | Nickel |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
