BBD-113-T-A

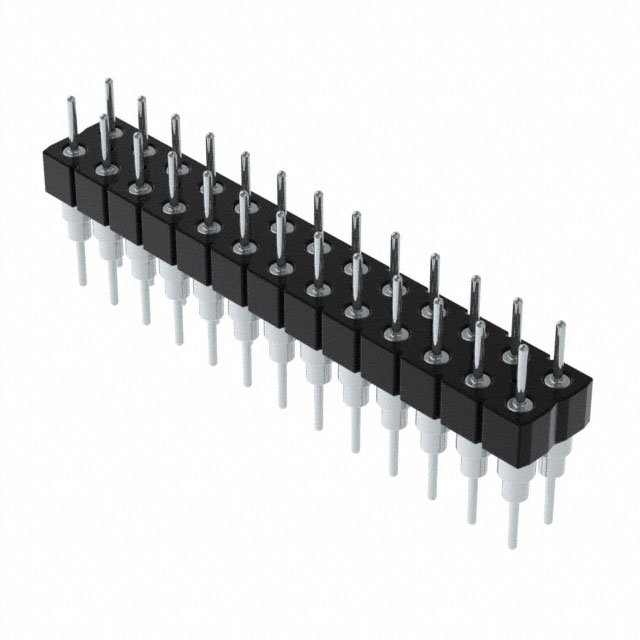

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy BBD-113-T-A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy BBD-113-T-A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | BBD-113-T-A |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | INTERCONNECT STRIPS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $1.332 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | BBD-113-T-A | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | INTERCONNECT STRIPS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 23116 pcs | Data sheet | Bxx-1xx-x-x-x DrawingB(BS,BL,HS,BD,DL) Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Shrouding | Unshrouded | Series | BBD |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tube | Overall Contact Length | 0.460" (11.68mm) |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 26 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 3 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyester, Glass Filled | Insulation Height | 0.211" (5.35mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole 26 position 0.100" (2.54mm) | Current Rating | - |
| Contact Type | Male Pin | Contact Shape | Circular |
| Contact Material | - | Contact Length - Post | 0.125" (3.18mm) |
| Contact Length - Mating | 0.125" (3.18mm) | Contact Finish Thickness - Post | 50.0µin (1.27µm) |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Nickel |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | - |
