Home > Products > Integrated Circuits (ICs) > PMIC - AC DC Converters, Offline Switchers > VIPER28LE

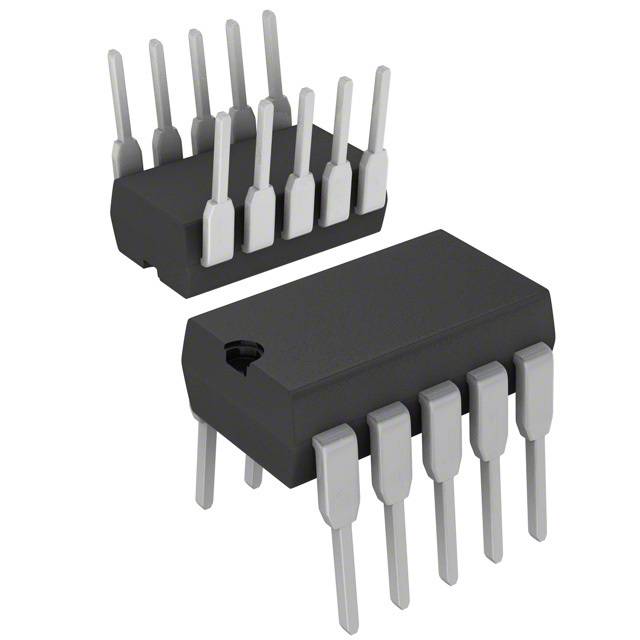

VIPER28LE

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy VIPER28LE with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	VIPER28LE
Manufacturer	STMicroelectronics
Description	IC OFFLINE CONV PWM 800V 10-SDIP
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 4739 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	VIPER28LE	Manufacturer	STMicroelectronics
Description	IC OFFLINE CONV PWM 800V 10-SDIP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4739 pcs	Data sheet	VIPER28
Category	Integrated Circuits (ICs)	Voltage - Supply (Vcc/Vdd)	8.5 V ~ 23.5 V
Voltage - Start Up	14V	Voltage - Breakdown	800V
Topology	Flyback	Supplier Device Package	10-SDIP
Series	VIPer™ plus	Power (Watts)	16W
Packaging	Tube	Package / Case	10-SDIP (0.300", 7.62mm)
Output Isolation	Isolated	Other Names	497-10747-5
Operating Temperature	-40°C ~ 150°C (TJ)	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Internal Switch(s)	Yes	Frequency - Switching	60kHz
Fault Protection	Current Limiting, Over Temperature, Over Voltage, Short Circuit	Duty Cycle	80%
Detailed Description	Converter Offline Flyback Topology 60kHz 10-SDIP	Control Features	-
Base Part Number	VIPER28
