TMMBAT42FILM

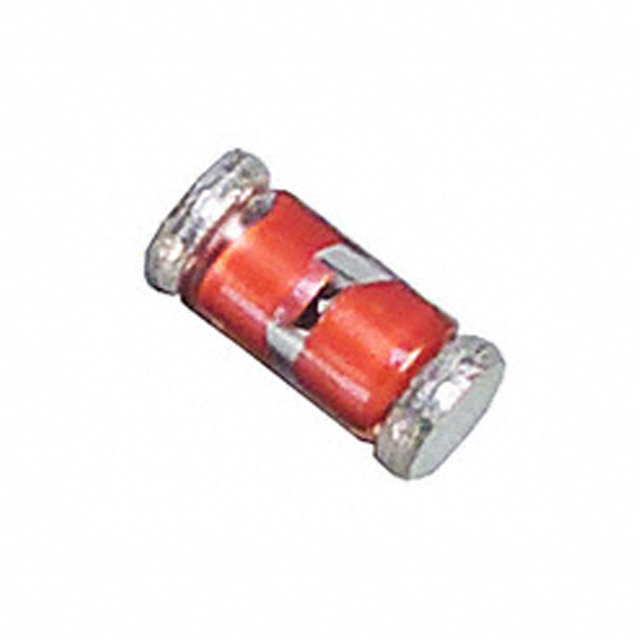

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TMMBAT42FILM with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TMMBAT42FILM with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TMMBAT42FILM |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | DIODE SCHOTTKY 30V 200MA MINMELF |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 2500 pcs | 5000 pcs | 12500 pcs | 25000 pcs | |
|---|---|---|---|---|---|
| $0.041 | $0.039 | $0.035 | $0.033 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | TMMBAT42FILM | Manufacturer | STMicroelectronics |
|---|---|---|---|
| Description | DIODE SCHOTTKY 30V 200MA MINMELF | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 671364 pcs | Data sheet | TMMBAT42/3 |
| Category | Discrete Semiconductor Products | Voltage - Forward (Vf) (Max) @ If | 1V @ 200mA |
| Voltage - DC Reverse (Vr) (Max) | 30V | Supplier Device Package | Mini MELF |
| Speed | Small Signal =< 200mA (Io), Any Speed | Series | - |
| Reverse Recovery Time (trr) | 5ns | Packaging | Tape & Reel (TR) |
| Package / Case | DO-213AA (Glass) | Other Names | 497-3272-2 |
| Operating Temperature - Junction | -65°C ~ 125°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Diode Type | Schottky |
| Detailed Description | Diode Schottky 30V 200mA (DC) Surface Mount Mini MELF | Current - Reverse Leakage @ Vr | 500nA @ 25V |
| Current - Average Rectified (Io) | 200mA (DC) | Capacitance @ Vr, F | 7pF @ 1V, 1MHz |
| Base Part Number | BAT42 |
