Home > Products > Discrete Semiconductor Products > Diodes - Rectifiers - Arrays > STTH60AC06CP

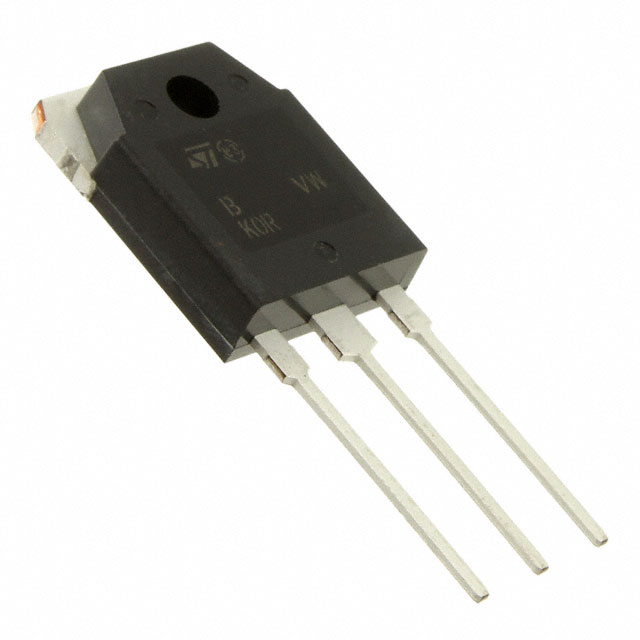

STTH60AC06CP

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy STTH60AC06CP with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	STTH60AC06CP
Manufacturer	STMicroelectronics
Description	DIODE ARRAY GP 600V 30A TO3P
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 34106 pcs
Reference Price (In US Dollars)	1 pcs	30 pcs	120 pcs	510 pcs	1020 pcs
Reference Price (In US Dollars)	$1.946	$1.652	$1.432	$1.219	$1.028

Product parameter
Data sheet

Product parameter

Part Number	STTH60AC06CP	Manufacturer	STMicroelectronics
Description	DIODE ARRAY GP 600V 30A TO3P	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	34106 pcs	Data sheet	STTH60AC06C Diodes and Rectifiers Selection Guide
Category	Discrete Semiconductor Products	Voltage - Forward (Vf) (Max) @ If	1.75V @ 30A
Voltage - DC Reverse (Vr) (Max)	600V	Supplier Device Package	TO-3P
Speed	Fast Recovery = 200mA (Io)	Series	-
Reverse Recovery Time (trr)	40ns	Packaging	Tube
Package / Case	TO-3P-3, SC-65-3	Other Names	497-14289-5 STTH60AC06CP-ND
Operating Temperature - Junction	175°C (Max)	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Diode Type	Standard	Diode Configuration	1 Pair Common Cathode
Detailed Description	Diode Array 1 Pair Common Cathode Standard 600V 30A Through Hole TO-3P-3, SC-65-3	Current - Reverse Leakage @ Vr	10µA @ 600V
Current - Average Rectified (Io) (per Diode)	30A
