Home > Products > Discrete Semiconductor Products > Diodes - Rectifiers - Single > STTH1R02ZF

STTH1R02ZF

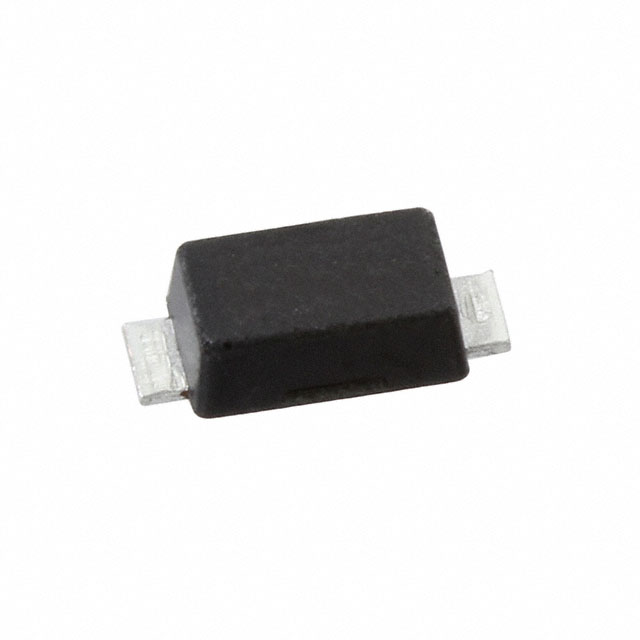

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy STTH1R02ZF with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	STTH1R02ZF
Manufacturer	STMicroelectronics
Description	DIODE GEN PURP 200V 1A SOD123F
Lead Free Status / RoHS Status

~~In Stock~~ 837372 pcs
Reference Price (In US Dollars)	12000 pcs
Reference Price (In US Dollars)	$0.028

Product parameter
Data sheet

Product parameter

Part Number	STTH1R02ZF	Manufacturer	STMicroelectronics
Description	DIODE GEN PURP 200V 1A SOD123F	Lead Free Status / RoHS Status
Quantity Available	837372 pcs	Data sheet	STTH1R02ZF
Category	Discrete Semiconductor Products	Voltage - Forward (Vf) (Max) @ If	1V @ 1A
Voltage - DC Reverse (Vr) (Max)	200V	Supplier Device Package	SOD-123F
Speed	Fast Recovery = 200mA (Io)	Series	-
Reverse Recovery Time (trr)	32ns	Packaging	Tape & Reel (TR)
Package / Case	SOD-123F	Operating Temperature - Junction	175°C (Max)
Mounting Type	Surface Mount	Manufacturer Standard Lead Time	29 Weeks
Diode Type	Standard	Detailed Description	Diode Standard 200V 1A Surface Mount SOD-123F
Current - Reverse Leakage @ Vr	500nA @ 200V	Current - Average Rectified (Io)	1A
Capacitance @ Vr, F	-
