STT13005D-K

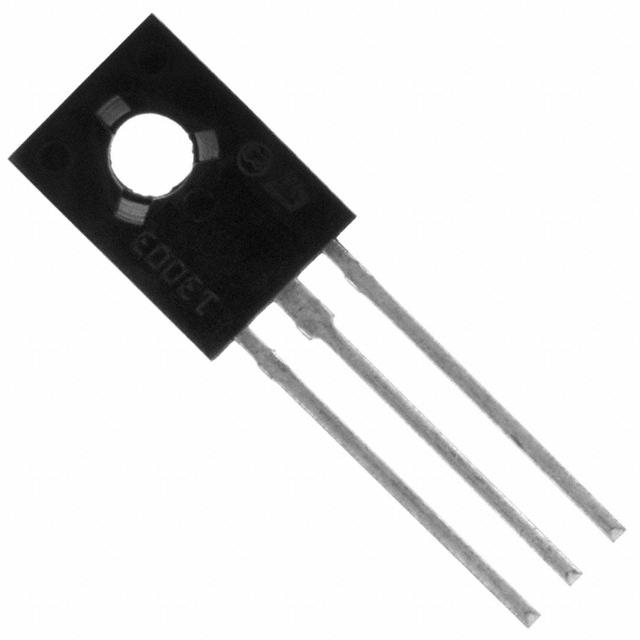

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy STT13005D-K with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy STT13005D-K with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | STT13005D-K |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | TRANS NPN 400V 2A SOT-32 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.297 | $0.261 | $0.20 | $0.158 | $0.126 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | STT13005D-K | Manufacturer | STMicroelectronics |
|---|---|---|---|
| Description | TRANS NPN 400V 2A SOT-32 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 156481 pcs | Data sheet | STT13005D |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 400V |
| Vce Saturation (Max) @ Ib, Ic | 1.5V @ 400mA, 1.6A | Transistor Type | NPN |
| Supplier Device Package | SOT-32-3 | Series | - |
| Power - Max | 45W | Packaging | Bulk |
| Package / Case | TO-225AA, TO-126-3 | Other Names | 497-10970 STT13005DK |
| Operating Temperature | 150°C (TJ) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 38 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Frequency - Transition | - |
| Detailed Description | Bipolar (BJT) Transistor NPN 400V 2A 45W Through Hole SOT-32-3 | DC Current Gain (hFE) (Min) @ Ic, Vce | 10 @ 500mA, 5V |
| Current - Collector Cutoff (Max) | 250µA | Current - Collector (Ic) (Max) | 2A |
| Base Part Number | STT13005 |
