Home > Products > Discrete Semiconductor Products > Diodes - Rectifiers - Arrays > STPS60L30CKY-TR

STPS60L30CKY-TR

STPS60L30CKY-TR

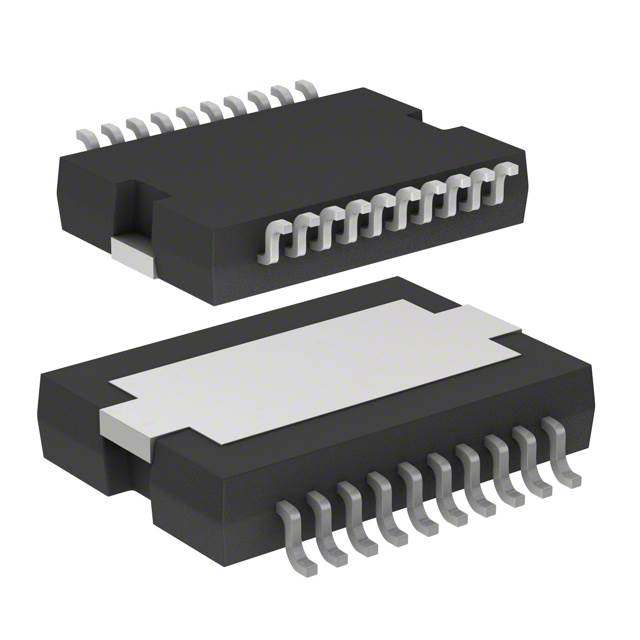

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy STPS60L30CKY-TR with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	STPS60L30CKY-TR
Manufacturer	STMicroelectronics
Description	DIODE ARRAY SCHOTTKY 30V POWERSO
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 20818 pcs
Reference Price (In US Dollars)	600 pcs
Reference Price (In US Dollars)	$1.748

Product parameter
Data sheet

Product parameter

Part Number	STPS60L30CKY-TR	Manufacturer	STMicroelectronics
Description	DIODE ARRAY SCHOTTKY 30V POWERSO	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	20818 pcs	Data sheet	STPS60L30C-Y
Category	Discrete Semiconductor Products	Voltage - Forward (Vf) (Max) @ If	490mV @ 30A
Voltage - DC Reverse (Vr) (Max)	30V	Supplier Device Package	PowerSO-20
Speed	Fast Recovery = 200mA (Io)	Series	Automotive, AEC-Q101
Packaging	Tape & Reel (TR)	Package / Case	20-SOIC (0.433", 11.00mm Width) Exposed Pad
Other Names	497-11104-2 STPS60L30CKYTR	Operating Temperature - Junction	-40°C ~ 150°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Diode Type	Schottky
Diode Configuration	1 Pair Common Cathode	Detailed Description	Diode Array 1 Pair Common Cathode Schottky 30V 30A Surface Mount 20-SOIC (0.433", 11.00mm Width) Exposed Pad
Current - Reverse Leakage @ Vr	2mA @ 30V	Current - Average Rectified (Io) (per Diode)	30A
Base Part Number	STPS60L30C
