Home > Products > Discrete Semiconductor Products > Diodes - Rectifiers - Single > STPS5H100AF

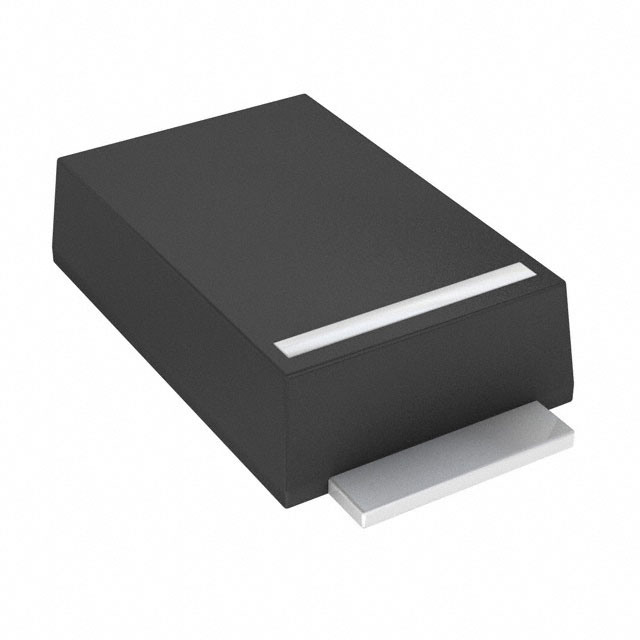

STPS5H100AF

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy STPS5H100AF with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	STPS5H100AF
Manufacturer	STMicroelectronics
Description	DIODE SCHOTTKY 100V 5A SOD128
Lead Free Status / RoHS Status

~~In Stock~~ 360472 pcs
Reference Price (In US Dollars)	6000 pcs
Reference Price (In US Dollars)	$0.066

Product parameter
Data sheet

Product parameter

Part Number	STPS5H100AF	Manufacturer	STMicroelectronics
Description	DIODE SCHOTTKY 100V 5A SOD128	Lead Free Status / RoHS Status
Quantity Available	360472 pcs	Data sheet	STPS5H100AF
Category	Discrete Semiconductor Products	Voltage - Forward (Vf) (Max) @ If	760mV @ 5A
Voltage - DC Reverse (Vr) (Max)	100V	Supplier Device Package	SOD128Flat
Speed	Fast Recovery = 200mA (Io)	Series	-
Packaging	Tape & Reel (TR)	Package / Case	SOD-128
Operating Temperature - Junction	175°C (Max)	Mounting Type	Surface Mount
Manufacturer Standard Lead Time	16 Weeks	Diode Type	Schottky
Detailed Description	Diode Schottky 100V 5A Surface Mount SOD128Flat	Current - Reverse Leakage @ Vr	3.5µA @ 100V
Current - Average Rectified (Io)	5A	Capacitance @ Vr, F	-
