Home > Products > Discrete Semiconductor Products > Diodes - Rectifiers - Single > STPS1L60RL

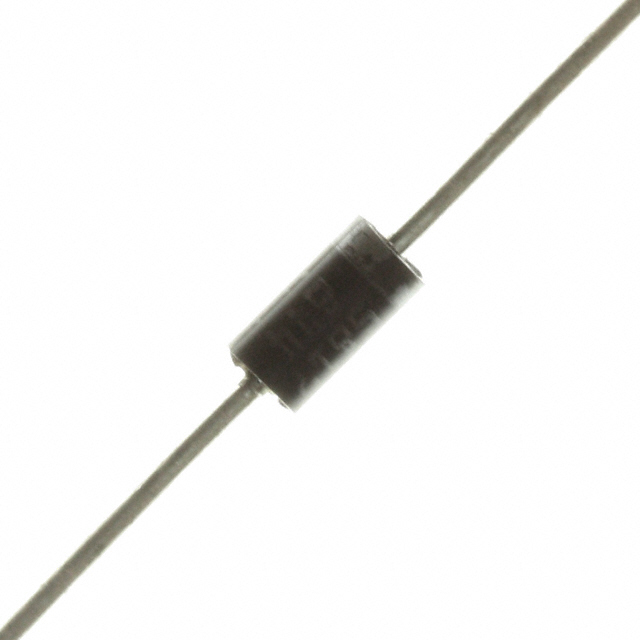

STPS1L60RL

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy STPS1L60RL with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	STPS1L60RL
Manufacturer	STMicroelectronics
Description	DIODE SCHOTTKY 60V 1A DO41
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 387946 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	100 pcs	500 pcs	1000 pcs
Reference Price (In US Dollars)	$0.157	$0.135	$0.101	$0.079	$0.061

Product parameter
Data sheet

Product parameter

Part Number	STPS1L60RL	Manufacturer	STMicroelectronics
Description	DIODE SCHOTTKY 60V 1A DO41	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	387946 pcs	Data sheet	STPS1L60
Category	Discrete Semiconductor Products	Voltage - Forward (Vf) (Max) @ If	570mV @ 1A
Voltage - DC Reverse (Vr) (Max)	60V	Supplier Device Package	DO-41
Speed	Fast Recovery = 200mA (Io)	Series	-
Packaging	Cut Tape (CT)	Package / Case	DO-204AL, DO-41, Axial
Other Names	497-16205-1	Operating Temperature - Junction	150°C (Max)
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	9 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Diode Type	Schottky	Detailed Description	Diode Schottky 60V 1A Through Hole DO-41
Current - Reverse Leakage @ Vr	50µA @ 60V	Current - Average Rectified (Io)	1A
Capacitance @ Vr, F	-
