STN3P6F6

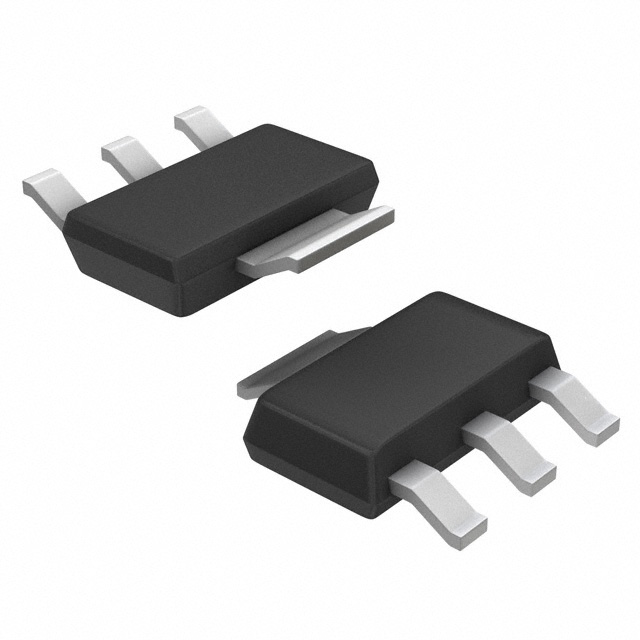

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy STN3P6F6 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy STN3P6F6 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | STN3P6F6 |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | MOSFET P-CH 60V SOT-223 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 4000 pcs | ||||
|---|---|---|---|---|---|
| $0.114 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | STN3P6F6 | Manufacturer | STMicroelectronics |
|---|---|---|---|
| Description | MOSFET P-CH 60V SOT-223 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 181298 pcs | Data sheet | STN3P6F6 |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 4V @ 250µA |
| Vgs (Max) | ±20V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | SOT-223 | Series | DeepGATE™, STripFET™ VI |
| Rds On (Max) @ Id, Vgs | 160 mOhm @ 1.5A, 10V | Power Dissipation (Max) | 2.6W (Tc) |
| Packaging | Tape & Reel (TR) | Package / Case | TO-261-4, TO-261AA |
| Other Names | 497-13537-2 | Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 340pF @ 48V |
| Gate Charge (Qg) (Max) @ Vgs | 6.4nC @ 10V | FET Type | P-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Drain to Source Voltage (Vdss) | 60V | Detailed Description | P-Channel 60V 2.6W (Tc) Surface Mount SOT-223 |
| Current - Continuous Drain (Id) @ 25°C | - |
