STL8N65M5

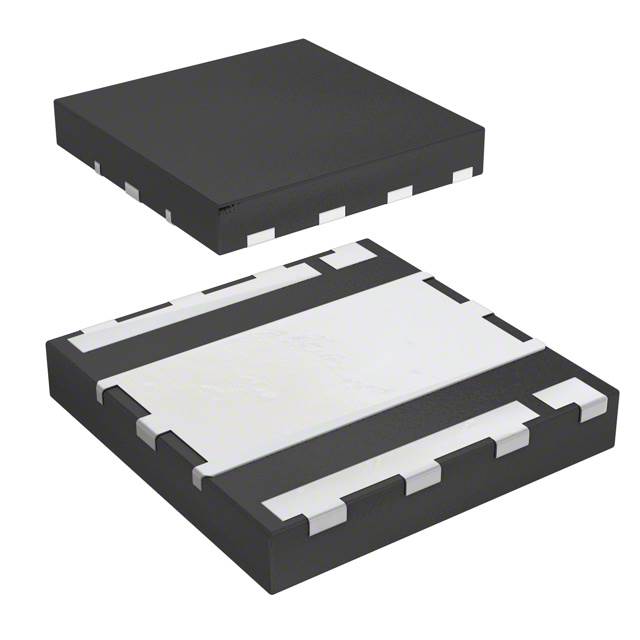

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy STL8N65M5 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy STL8N65M5 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | STL8N65M5 |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | MOSFET N-CH 650V 7A POWERFLAT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | ||||
|---|---|---|---|---|---|
| $0.496 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | STL8N65M5 | Manufacturer | STMicroelectronics |
|---|---|---|---|
| Description | MOSFET N-CH 650V 7A POWERFLAT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 66289 pcs | Data sheet | STL8N65M5 |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 5V @ 250µA |
| Vgs (Max) | ±25V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | PowerFLAT™ (5x5) | Series | MDmesh™ V |
| Rds On (Max) @ Id, Vgs | 600 mOhm @ 3.5A, 10V | Power Dissipation (Max) | 2.5W (Ta), 70W (Tc) |
| Packaging | Tape & Reel (TR) | Package / Case | 14-PowerVQFN |
| Other Names | 497-11850-2 | Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 690pF @ 100V |
| Gate Charge (Qg) (Max) @ Vgs | 15nC @ 10V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Drain to Source Voltage (Vdss) | 650V | Detailed Description | N-Channel 650V 1.4A (Ta), 7A (Tc) 2.5W (Ta), 70W (Tc) Surface Mount PowerFLAT™ (5x5) |
| Current - Continuous Drain (Id) @ 25°C | 1.4A (Ta), 7A (Tc) |
