STH270N8F7-2

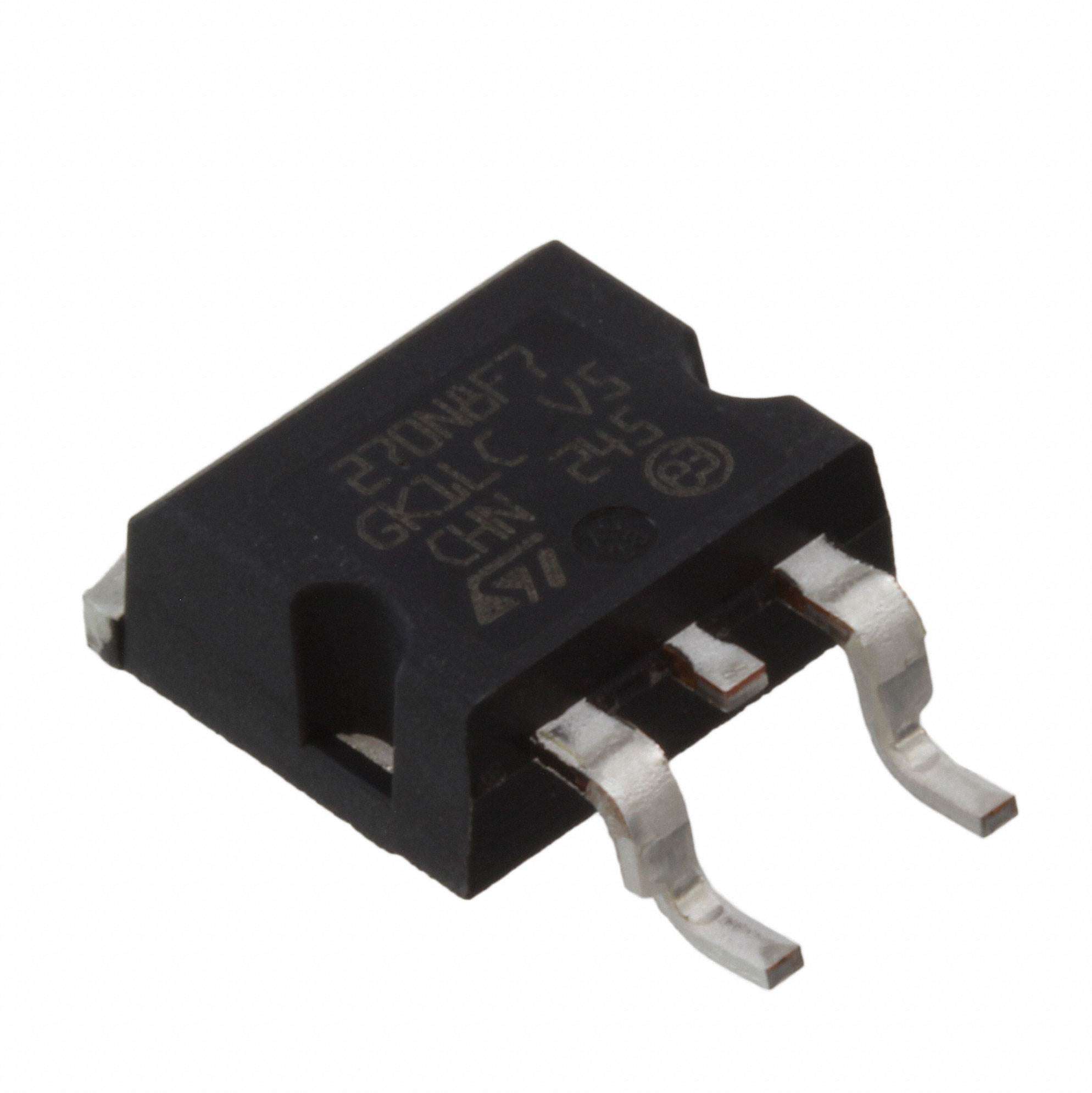

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy STH270N8F7-2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy STH270N8F7-2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | STH270N8F7-2 |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | MOSFET N-CH 80V 180A H2PAK-2 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $2.989 | $2.689 | $2.211 | $1.853 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | STH270N8F7-2 | Manufacturer | STMicroelectronics |
|---|---|---|---|
| Description | MOSFET N-CH 80V 180A H2PAK-2 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 20750 pcs | Data sheet | STH270N8F7-2/6, STP270N8F7 |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 4V @ 250µA |
| Vgs (Max) | ±20V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | H²PAK | Series | DeepGATE™, STripFET™ VII |
| Rds On (Max) @ Id, Vgs | 2.1 mOhm @ 90A, 10V | Power Dissipation (Max) | 315W (Tc) |
| Packaging | Cut Tape (CT) | Package / Case | TO-263-3, D²Pak (2 Leads + Tab) Variant |
| Other Names | 497-13873-1 | Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 38 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 13600pF @ 50V | Gate Charge (Qg) (Max) @ Vgs | 193nC @ 10V |
| FET Type | N-Channel | FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | Drain to Source Voltage (Vdss) | 80V |
| Detailed Description | N-Channel 80V 180A (Tc) 315W (Tc) Surface Mount H²PAK | Current - Continuous Drain (Id) @ 25°C | 180A (Tc) |
