Home > Products > Discrete Semiconductor Products > Transistors - IGBTs - Single > STGP15M65DF2

STGP15M65DF2

STGP15M65DF2

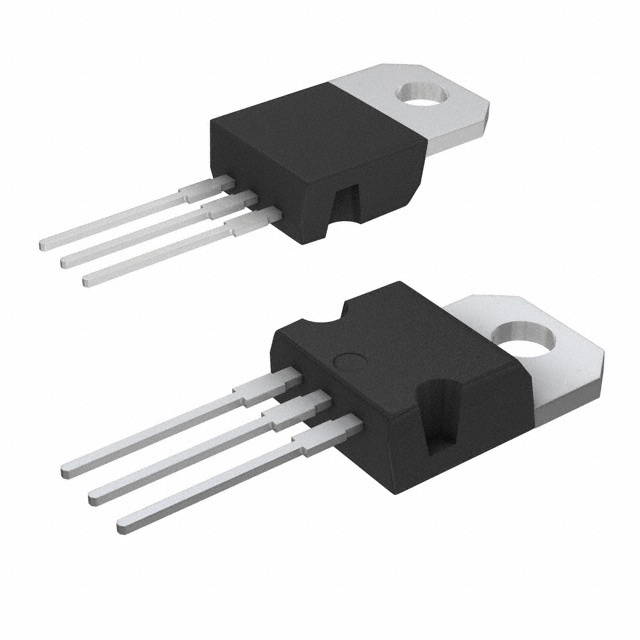

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy STGP15M65DF2 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number STGP15M65DF2
Manufacturer STMicroelectronics
Description TRENCH GATE FIELD-STOP IGBT M SE
Lead Free Status / RoHS Status Lead free / RoHS Compliant
In Stock 83974 pcs
Reference Price
(In US Dollars)		1 pcs50 pcs100 pcs500 pcs1000 pcs
$0.905$0.729$0.656$0.51$0.423

Submit a Request For Quotation on quantities greater than those displayed.

Target Price:(USD)
Quantity:
Total:
$0.905

Product parameter

Part Number STGP15M65DF2 Manufacturer STMicroelectronics
Description TRENCH GATE FIELD-STOP IGBT M SE Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 83974 pcs Data sheet STGP15M65DF2 Datasheet
Category Discrete Semiconductor Products Voltage - Collector Emitter Breakdown (Max) 650V
Vce(on) (Max) @ Vge, Ic 2V @ 15V, 15A Test Condition 400V, 15A, 12 Ohm, 15V
Td (on/off) @ 25°C 24ns/93ns Switching Energy 90µJ (on), 450µJ (off)
Supplier Device Package TO-220 Series -
Reverse Recovery Time (trr) 142ns Power - Max 136W
Packaging Tube Package / Case TO-220-3
Other Names 497-16482-5 Operating Temperature -55°C ~ 175°C (TJ)
Mounting Type Through Hole Moisture Sensitivity Level (MSL) 1 (Unlimited)
Lead Free Status / RoHS Status Lead free / RoHS Compliant Input Type Standard
IGBT Type Trench Field Stop Gate Charge 45nC
Detailed Description IGBT Trench Field Stop 650V 30A 136W Through Hole TO-220 Current - Collector Pulsed (Icm) 60A
Current - Collector (Ic) (Max) 30A
