STGAP1STR

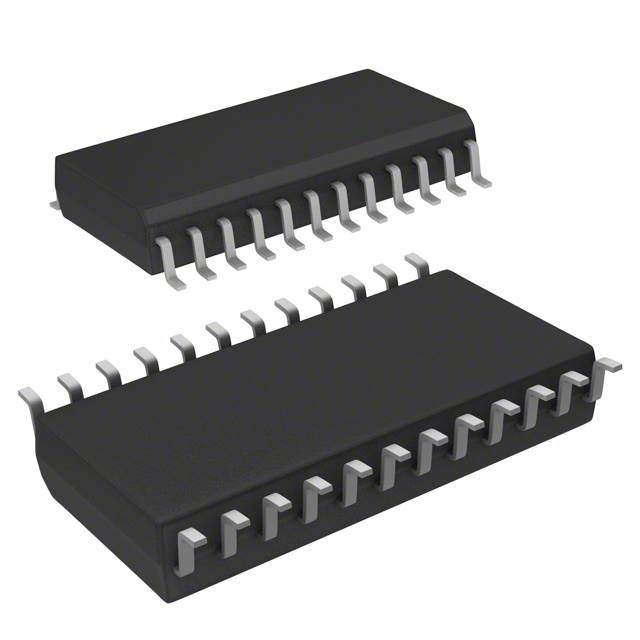

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy STGAP1STR with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy STGAP1STR with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | STGAP1STR |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | DGTL ISO 2.5KV 1CH GATE DVR 24SO |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1000 pcs | ||||
|---|---|---|---|---|---|
| $1.479 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | STGAP1STR | Manufacturer | STMicroelectronics |
|---|---|---|---|
| Description | DGTL ISO 2.5KV 1CH GATE DVR 24SO | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 26417 pcs | Data sheet | STGAP1S |
| Category | Isolators | Voltage - Supply | 4.5 V ~ 36 V |
| Voltage - Isolation | 2500Vrms | Voltage - Forward (Vf) (Typ) | - |
| Technology | Magnetic Coupling | Supplier Device Package | 24-SO |
| Series | Automotive, AEC-Q100, gapDRIVE™ | Rise / Fall Time (Typ) | 25ns, 25ns (Max) |
| Pulse Width Distortion (Max) | 10ns | Propagation Delay tpLH / tpHL (Max) | 130ns, 130ns |
| Packaging | Tape & Reel (TR) | Package / Case | 24-SOIC (0.295", 7.50mm Width) |
| Other Names | 497-16415-2 STGAP1STR-ND |
Operating Temperature | -40°C ~ 125°C |
| Number of Channels | 1 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Detailed Description | Gate Driver Magnetic Coupling 2500Vrms 1 Channel 24-SO | Current - Peak Output | - |
| Current - Output High, Low | 2.5A, 2.5A | Common Mode Transient Immunity (Min) | - |
| Approvals | UL |
