Home > Products > Integrated Circuits (ICs) > PMIC - Voltage Regulators - DC DC Switching Regula > STBB3JR

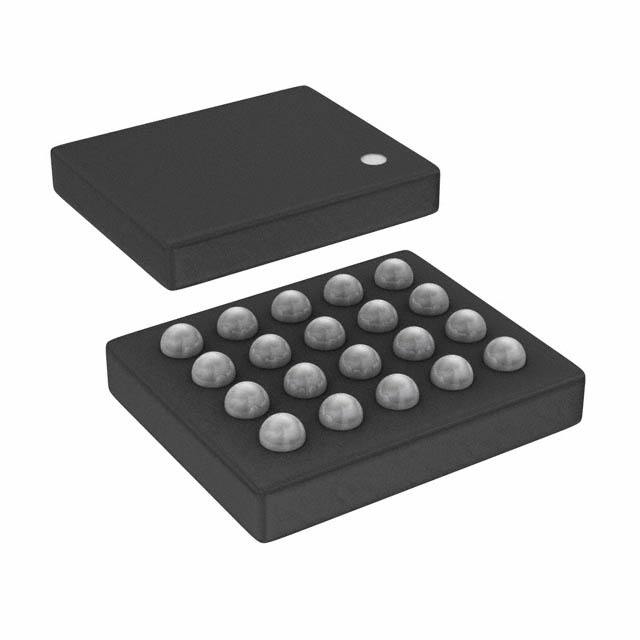

STBB3JR

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy STBB3JR with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	STBB3JR
Manufacturer	STMicroelectronics
Description	IC REG BCK BST ADJ 2A 20FLIPCHIP
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 64247 pcs
Reference Price (In US Dollars)	5000 pcs
Reference Price (In US Dollars)	$0.469

Product parameter
Data sheet

Product parameter

Part Number	STBB3JR	Manufacturer	STMicroelectronics
Description	IC REG BCK BST ADJ 2A 20FLIPCHIP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	64247 pcs	Data sheet	STBB3J
Category	Integrated Circuits (ICs)	Voltage - Output (Min/Fixed)	1.2V
Voltage - Output (Max)	5.5V	Voltage - Input (Min)	1.8V
Voltage - Input (Max)	5.5V	Topology	Buck-Boost
Synchronous Rectifier	Yes	Supplier Device Package	20-Flip-Chip (2.5x1.75)
Series	-	Packaging	Tape & Reel (TR)
Package / Case	20-UFBGA, FCBGA	Output Type	Adjustable
Output Configuration	Positive	Other Names	497-14693-2 STBB3JR-ND
Operating Temperature	-40°C ~ 85°C (TA)	Number of Outputs	1
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	38 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Function	Step-Up/Step-Down	Frequency - Switching	2MHz
Detailed Description	Buck-Boost Switching Regulator IC Positive Adjustable 1.2V 1 Output 2A 20-UFBGA, FCBGA	Current - Output	2A
Base Part Number	STBB3J
