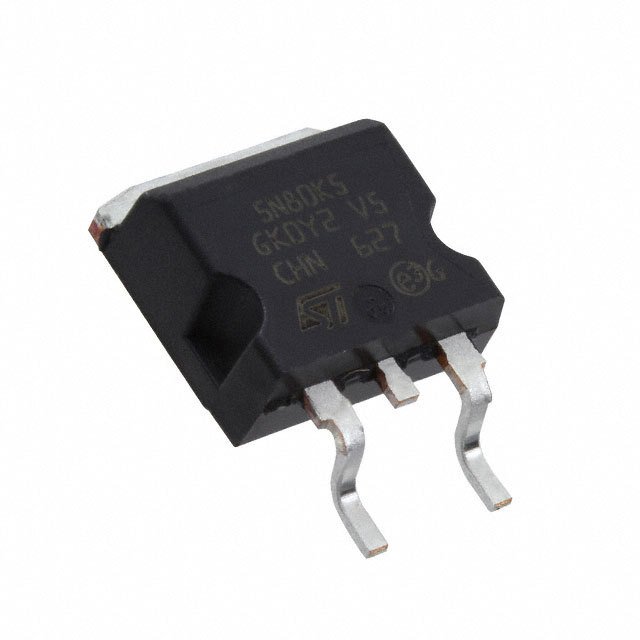

STB5N80K5
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy STB5N80K5 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy STB5N80K5 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | STB5N80K5 |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | N-CHANNEL 800 V, 1.50 OHM TYP., |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.729 | $0.658 | $0.529 | $0.412 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | STB5N80K5 | Manufacturer | STMicroelectronics |
|---|---|---|---|
| Description | N-CHANNEL 800 V, 1.50 OHM TYP., | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 80203 pcs | Data sheet | Power Mgmt Guide BrochureSTB5N80K5 Datasheet |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 5V @ 100µA |
| Vgs (Max) | ±30V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | D2PAK | Series | MDmesh™ |
| Rds On (Max) @ Id, Vgs | 1.75 Ohm @ 2A, 10V | Power Dissipation (Max) | 60W (Tc) |
| Packaging | Cut Tape (CT) | Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
| Other Names | 497-16923-1 | Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 42 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 177pF @ 100V | Gate Charge (Qg) (Max) @ Vgs | 5nC @ 10V |
| FET Type | N-Channel | FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | Drain to Source Voltage (Vdss) | 800V |
| Detailed Description | N-Channel 800V 4A (Tc) 60W (Tc) Surface Mount D2PAK | Current - Continuous Drain (Id) @ 25°C | 4A (Tc) |
