ST3DV520QTR

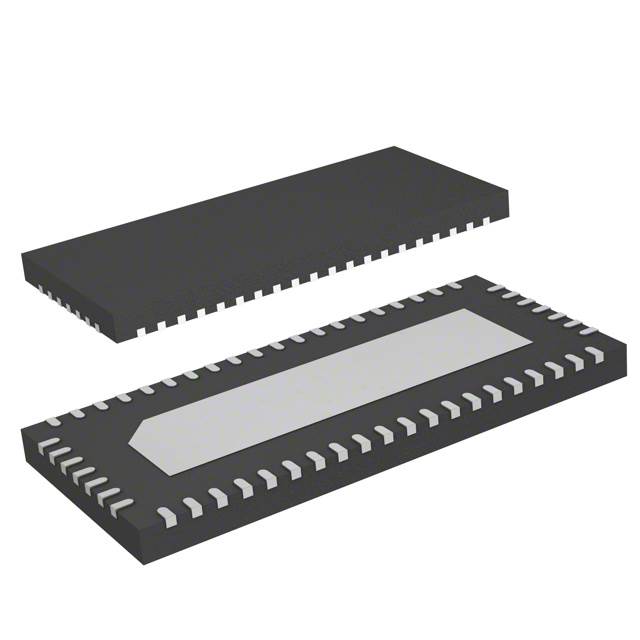

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ST3DV520QTR with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ST3DV520QTR with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ST3DV520QTR |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | IC MUX/DEMUX QUAD 2X1 56QFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $0.859 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | ST3DV520QTR | Manufacturer | STMicroelectronics |
|---|---|---|---|
| Description | IC MUX/DEMUX QUAD 2X1 56QFN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 43596 pcs | Data sheet | ST3DV520 |
| Category | Integrated Circuits (ICs) | Voltage - Supply, Single (V+) | 3 V ~ 3.6 V |
| Voltage - Supply, Dual (V±) | - | Switch Time (Ton, Toff) (Max) | 9ns, 8.5ns |
| Switch Circuit | SPDT | Supplier Device Package | 56-QFN (11x5) |
| Series | - | Packaging | Cut Tape (CT) |
| Package / Case | 56-WFQFN Exposed Pad | Other Names | 497-8381-1 |
| Operating Temperature | -55°C ~ 125°C (TA) | On-State Resistance (Max) | 7.5 Ohm |
| Number of Circuits | 4 | Multiplexer/Demultiplexer Circuit | 2:1 |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Detailed Description | 4 Circuit IC Switch 2:1 7.5 Ohm 56-QFN (11x5) | Current - Leakage (IS(off)) (Max) | 5µA |
| Crosstalk | -45dB @ 250MHz | Charge Injection | - |
| Channel-to-Channel Matching (ΔRon) | 500 mOhm | Channel Capacitance (CS(off), CD(off)) | 6pF |
| Base Part Number | ST3DV520 | -3db Bandwidth | 450MHz |
