Home > Products > Integrated Circuits (ICs) > Logic - Translators, Level Shifters > ST2329BQTR

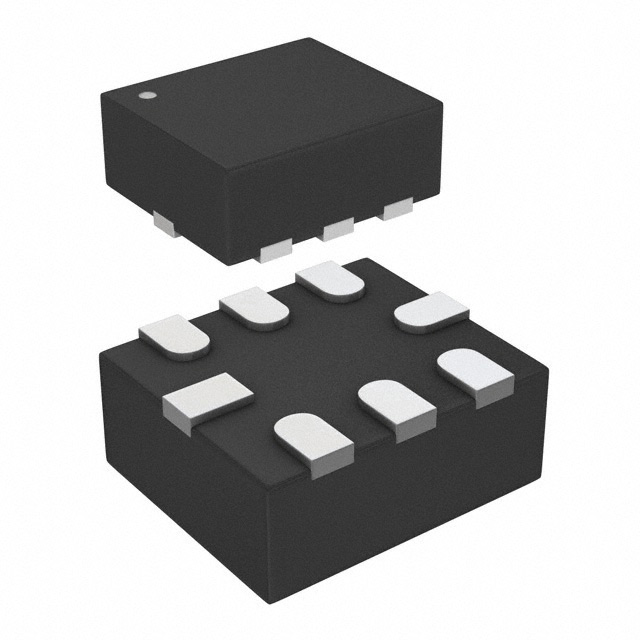

ST2329BQTR

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ST2329BQTR with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	ST2329BQTR
Manufacturer	STMicroelectronics
Description	IC TRNSLTR BIDIRECTIONAL 8QFN
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 103393 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	100 pcs	500 pcs	1000 pcs
Reference Price (In US Dollars)	$0.41	$0.366	$0.285	$0.236	$0.186

Product parameter
Data sheet

Product parameter

Part Number	ST2329BQTR	Manufacturer	STMicroelectronics
Description	IC TRNSLTR BIDIRECTIONAL 8QFN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	103393 pcs	Data sheet	ST2329B
Category	Integrated Circuits (ICs)	Voltage - VCCB	1.8V ~ 5.5V
Voltage - VCCA	1.65V ~ 3.6V	Translator Type	Voltage Level
Supplier Device Package	8-QFN	Series	-
Packaging	Cut Tape (CT)	Package / Case	8-UFQFN Exposed Pad
Output Type	Open Drain, Tri-State	Output Signal	-
Other Names	497-13368-1	Operating Temperature	-40°C ~ 85°C (TA)
Number of Circuits	1	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Signal	-	Features	-
Detailed Description	Voltage Level Translator Bidirectional 1 Circuit 2 Channel 18Mbps 8-QFN	Data Rate	18Mbps
Channels per Circuit	2	Channel Type	Bidirectional
Base Part Number	2329
