Home > Products > Circuit Protection > TVS - Diodes > SMM4F12AVCL

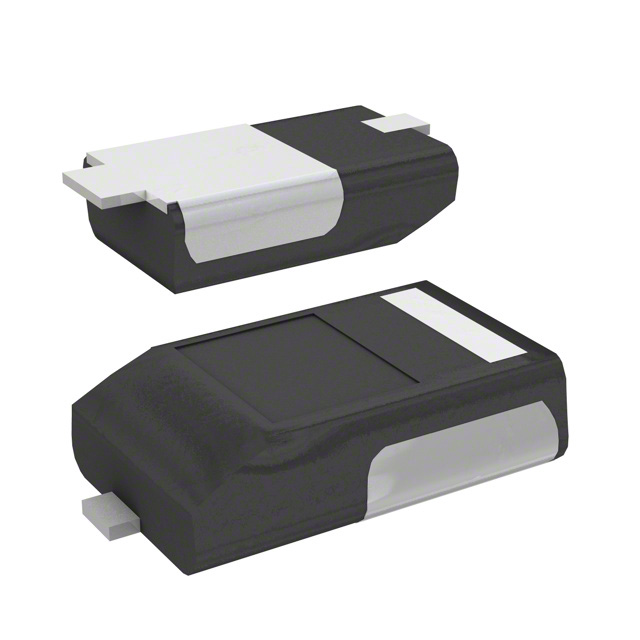

SMM4F12AVCL

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SMM4F12AVCL with confidence from Components-World.HK, 1 Year Warranty

Dowload SMM4F12AVCL Details in PDF

Request a Quote

Part Number	SMM4F12AVCL
Manufacturer	STMicroelectronics
Description	TVS DIODE 12V 22.9V STMITE FLAT
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 563482 pcs
Reference Price (In US Dollars)	12000 pcs
Reference Price (In US Dollars)	$0.042

Product parameter
Data sheet

Product parameter

Part Number	SMM4F12AVCL	Manufacturer	STMicroelectronics
Description	TVS DIODE 12V 22.9V STMITE FLAT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	563482 pcs	Data sheet	SMM4F12AVCL
Category	Circuit Protection	Voltage - Reverse Standoff (Typ)	12V
Voltage - Clamping (Max) @ Ipp	22.9V	Voltage - Breakdown (Min)	13V
Unidirectional Channels	1	Type	Zener
Supplier Device Package	STmite Flat	Series	SMM4F, TRANSIL™
Power Line Protection	No	Power - Peak Pulse	400W
Packaging	Tape & Reel (TR)	Package / Case	DO-222AA
Operating Temperature	-55°C ~ 175°C (TJ)	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	30 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Current - Peak Pulse (10/1000µs)	100A (8/20µs)
Capacitance @ Frequency	-	Base Part Number	SMM4F
Applications	General Purpose
