Home > Products > Integrated Circuits (ICs) > PMIC - Voltage Regulators - Special Purpose > PM6685TR

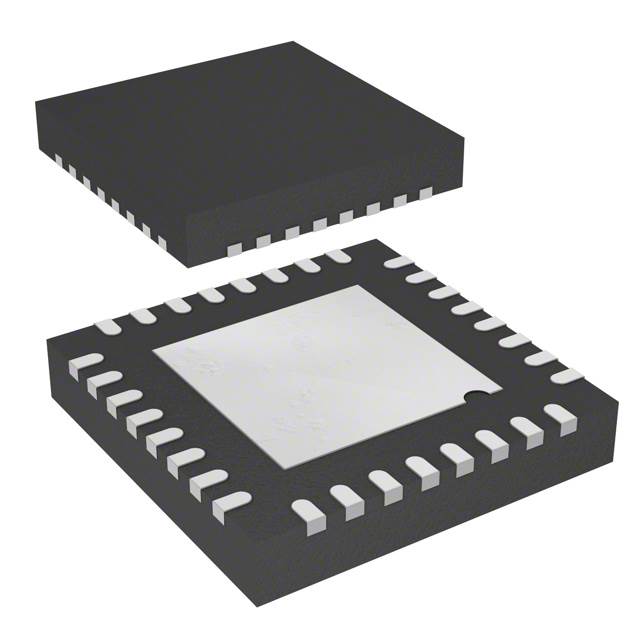

PM6685TR

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PM6685TR with confidence from Components-World.HK, 1 Year Warranty

Dowload PM6685TR Details in PDF

Request a Quote

Part Number	PM6685TR
Manufacturer	STMicroelectronics
Description	IC CTLR DUAL STEP DOWN 32VFQFPN
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 35100 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$1.106

Product parameter
Data sheet

Product parameter

Part Number	PM6685TR	Manufacturer	STMicroelectronics
Description	IC CTLR DUAL STEP DOWN 32VFQFPN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	35100 pcs	Data sheet	PM6685
Category	Integrated Circuits (ICs)	Voltage - Output	-3.3V, 5V
Voltage - Input	6 V ~ 28 V	Supplier Device Package	32-VFQFPN (5x5)
Series	-	Packaging	Cut Tape (CT)
Package / Case	32-VFQFN Exposed Pad	Other Names	497-7860-1
Operating Temperature	0°C ~ 85°C	Number of Outputs	2
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	3 (168 Hours)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Detailed Description	- Controller, Notebook Power System Voltage Regulator IC 2 Output 32-VFQFPN (5x5)
Base Part Number	PM6685	Applications	Controller, Notebook Power System
