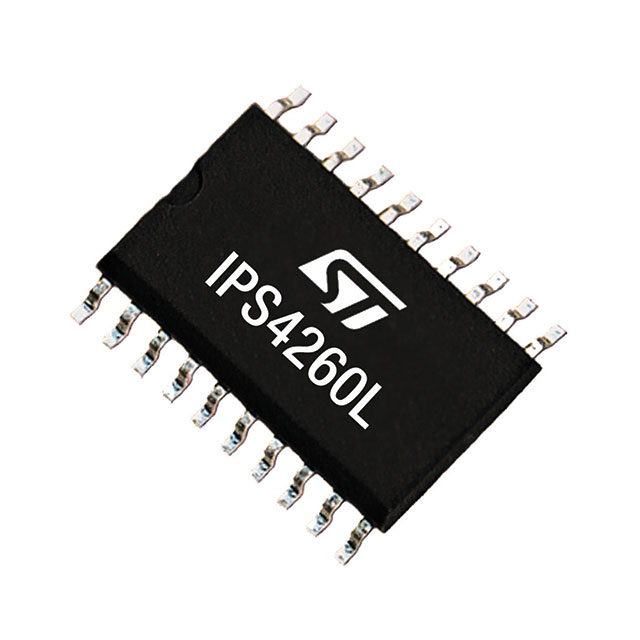

IPS4260L
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IPS4260L with confidence from Components-World.HK, 1 Year Warranty
Dowload IPS4260L Details in PDFSee Product Specifications for product details.
Buy IPS4260L with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | IPS4260L |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | QUAD LOW-SIDE INTELLIGENT POWER |
| Lead Free Status / RoHS Status |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $1.188 | $1.066 | $0.873 | $0.743 | $0.627 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | IPS4260L | Manufacturer | STMicroelectronics |
|---|---|---|---|
| Description | QUAD LOW-SIDE INTELLIGENT POWER | Lead Free Status / RoHS Status | |
| Quantity Available | 59905 pcs | Data sheet | IPS4260L |
| Category | Integrated Circuits (ICs) | Voltage - Supply (Vcc/Vdd) | Not Required |
| Voltage - Load | 8 V ~ 50 V | Switch Type | General Purpose |
| Supplier Device Package | 20-HTSSOP | Series | - |
| Rds On (Typ) | 280 mOhm | Ratio - Input:Output | 1:1 |
| Packaging | Tube | Package / Case | 20-TSSOP (0.173", 4.40mm Width) |
| Output Type | N-Channel | Output Configuration | Low Side |
| Other Names | 497-17788 | Operating Temperature | -40°C ~ 125°C (TJ) |
| Number of Outputs | 4 | Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Interface | On/Off | Input Type | - |
| Features | - | Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature |
| Current - Output (Max) | 2A |
