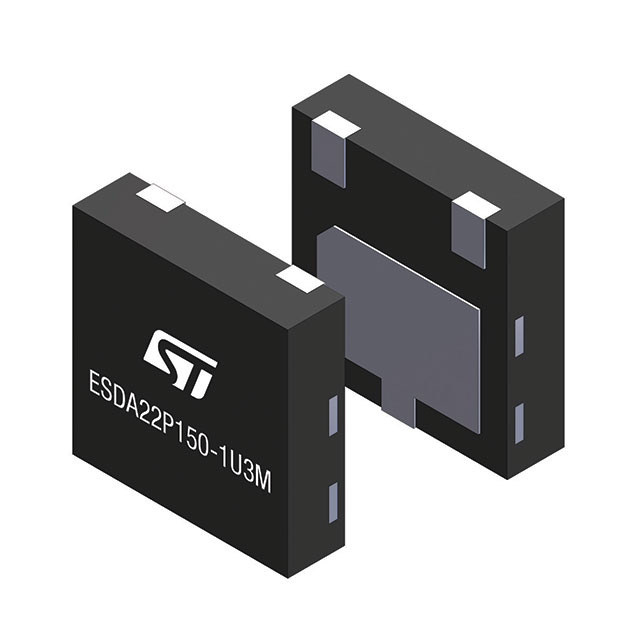

ESDA22P150-1U3M
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ESDA22P150-1U3M with confidence from Components-World.HK, 1 Year Warranty
Dowload ESDA22P150-1U3M Details in PDFSee Product Specifications for product details.
Buy ESDA22P150-1U3M with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ESDA22P150-1U3M |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | HIGH POWER TRANSIENT VOLTAGE SUP |
| Lead Free Status / RoHS Status |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.171 | $0.146 | $0.109 | $0.086 | $0.066 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | ESDA22P150-1U3M | Manufacturer | STMicroelectronics |
|---|---|---|---|
| Description | HIGH POWER TRANSIENT VOLTAGE SUP | Lead Free Status / RoHS Status | |
| Quantity Available | 293926 pcs | Data sheet | ESDA22P150-1U3M |
| Category | Circuit Protection | Voltage - Reverse Standoff (Typ) | 20V (Max) |
| Voltage - Clamping (Max) @ Ipp | 27.5V | Voltage - Breakdown (Min) | 21V |
| Unidirectional Channels | 2 | Type | Zener |
| Supplier Device Package | 3-QFN (2x2) | Series | ESDA, TRANSIL™ |
| Power Line Protection | No | Power - Peak Pulse | 330W |
| Packaging | Cut Tape (CT) | Package / Case | 3-UDFN Exposed Pad |
| Other Names | 497-18145-1 | Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Current - Peak Pulse (10/1000µs) | 11A | Capacitance @ Frequency | - |
| Applications | General Purpose |
