EMIF06-1005M12

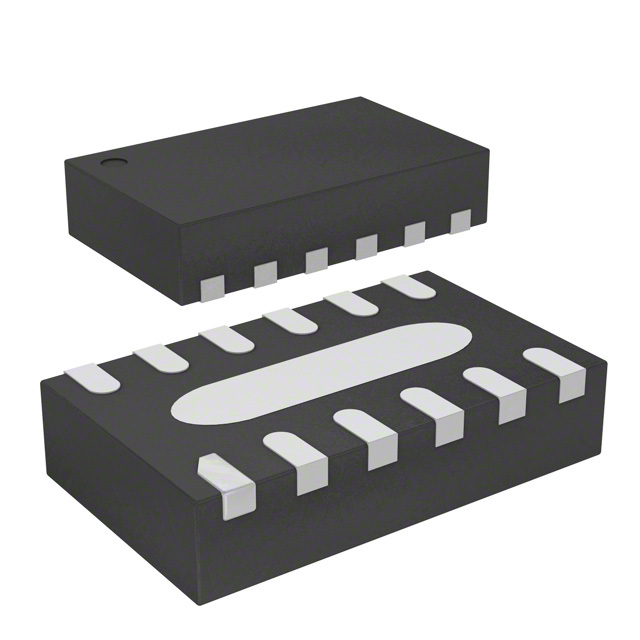

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EMIF06-1005M12 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy EMIF06-1005M12 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | EMIF06-1005M12 |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | FILTER RC(PI) 100 OHM/45PF SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.399 | $0.387 | $0.271 | $0.239 | $0.206 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | EMIF06-1005M12 | Manufacturer | STMicroelectronics |
|---|---|---|---|
| Description | FILTER RC(PI) 100 OHM/45PF SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 101279 pcs | Data sheet | EMIF06-1005M12 |
| Category | Filters | Voltage - Rated | - |
| Values | R = 100 Ohms, C = 45pF (Total) | Type | Low Pass |
| Technology | RC (Pi) | Size / Dimension | 0.098" L x 0.059" W (2.50mm x 1.50mm) |
| Series | IPAD™ | Resistance - Channel (Ohms) | 100 |
| Packaging | Original-Reel® | Package / Case | 12-UFDFN Exposed Pad |
| Other Names | 497-7740-6 | Operating Temperature | -40°C ~ 85°C |
| Number of Channels | 6 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height | 0.024" (0.60mm) |
| Filter Order | 2nd | ESD Protection | Yes |
| Detailed Description | RC (Pi) EMI Filter 2nd Order Low Pass 6 Channel R = 100 Ohms, C = 45pF (Total) 12-UFDFN Exposed Pad | Center / Cutoff Frequency | - |
| Attenuation Value | -34dB @ 900MHz ~ 1.8GHz | Applications | Data Lines for Mobile Devices |
