Home > Products > Integrated Circuits (ICs) > Linear - Amplifiers - Audio > E-TDA7560

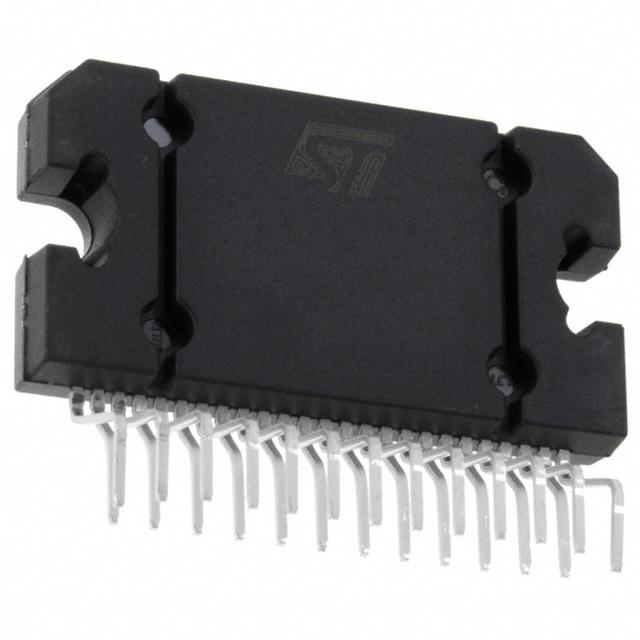

E-TDA7560

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy E-TDA7560 with confidence from Components-World.HK, 1 Year Warranty

Dowload E-TDA7560 Details in PDF

Request a Quote

Part Number	E-TDA7560
Manufacturer	STMicroelectronics
Description	IC CAR RADIO AMP FLEXIWATT25
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 13307 pcs
Reference Price (In US Dollars)	357 pcs
Reference Price (In US Dollars)	$2.282

Product parameter
Data sheet

Product parameter

Part Number	E-TDA7560	Manufacturer	STMicroelectronics
Description	IC CAR RADIO AMP FLEXIWATT25	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	13307 pcs	Data sheet	TDA7560
Category	Integrated Circuits (ICs)	Voltage - Supply	8 V ~ 18 V
Type	Class AB	Supplier Device Package	25-Flexiwatt (Vertical)
Series	Automotive	Packaging	Tube
Package / Case	25-Flexiwatt (Formed Leads)	Output Type	4-Channel (Quad)
Other Names	497-11733-5 E-TDA7560-ND ETDA7560	Operating Temperature	-
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Max Output Power x Channels @ Load	80W x 4 @ 2 Ohm	Manufacturer Standard Lead Time	12 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	Mute, Short-Circuit and Thermal Protection, Standby
Detailed Description	Amplifier IC 4-Channel (Quad) Class AB 25-Flexiwatt (Vertical)	Base Part Number	TDA7560
