Home > Products > RF/IF and RFID > RF Diplexers > DIP1524-01D3

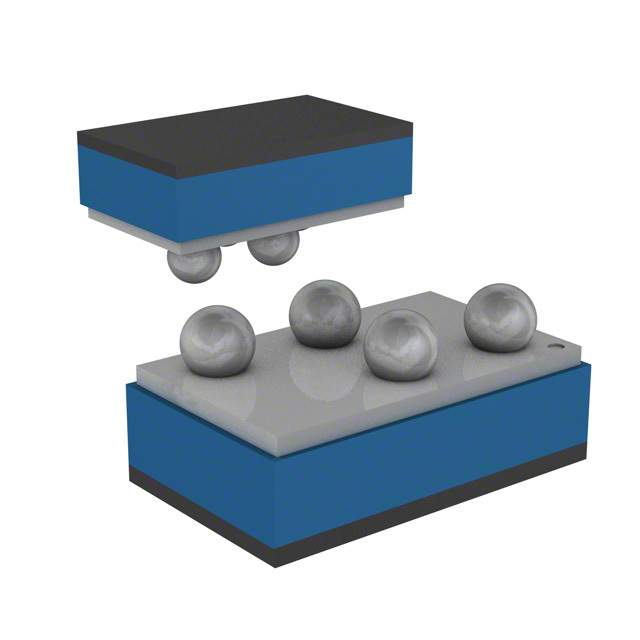

DIP1524-01D3

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DIP1524-01D3 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	DIP1524-01D3
Manufacturer	STMicroelectronics
Description	RF DIPLX 1589.655MHZ/2.55GHZ BGA
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 368621 pcs
Reference Price (In US Dollars)	5000 pcs
Reference Price (In US Dollars)	$0.062

Product parameter
Data sheet

Product parameter

Part Number	DIP1524-01D3	Manufacturer	STMicroelectronics
Description	RF DIPLX 1589.655MHZ/2.55GHZ BGA	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	368621 pcs	Data sheet	DIP1524-01D3
Category	RF/IF and RFID	Series	-
Return Loss (Low Band / High Band)	10dB, 20dB	Packaging	Tape & Reel (TR)
Package / Case	4-UFBGA, FCBGA	Other Names	497-12843-2 DIP152401D3
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	7 Weeks	Low Band Attenuation (min / max dB)	20.00dB / -
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	High Band Attenuation (min / max dB)	18.00dB / -
Frequency Bands (Low / High)	1573.42MHz ~ 1605.89MHz / 2.4GHz ~ 2.7GHz	Detailed Description	RF Diplexor 1573.42MHz ~ 1605.89MHz / 2.4GHz ~ 2.7GHz 4-UFBGA, FCBGA
