Home > Products > Discrete Semiconductor Products > Diodes - Rectifiers - Single > BAT30LFILM

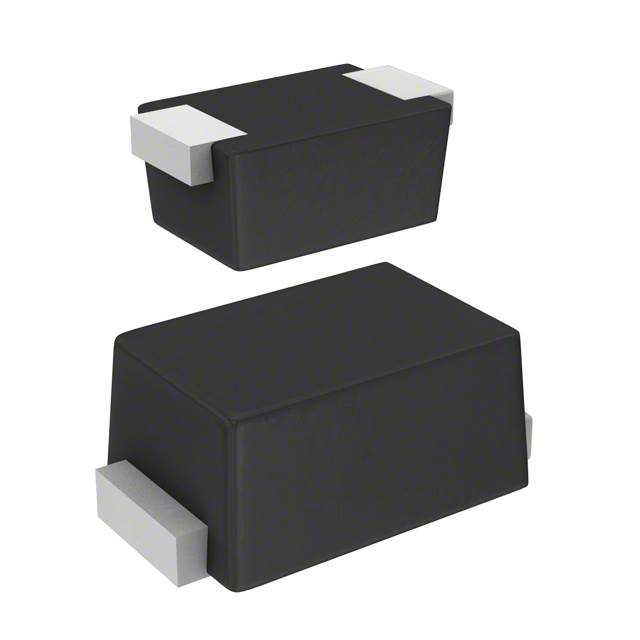

BAT30LFILM

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy BAT30LFILM with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	BAT30LFILM
Manufacturer	STMicroelectronics
Description	DIODE SCHOTTKY 30V 300MA SOD923
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 706989 pcs
Reference Price (In US Dollars)	10000 pcs
Reference Price (In US Dollars)	$0.034

Product parameter
Data sheet

Product parameter

Part Number	BAT30LFILM	Manufacturer	STMicroelectronics
Description	DIODE SCHOTTKY 30V 300MA SOD923	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	706989 pcs	Data sheet	BAT30
Category	Discrete Semiconductor Products	Voltage - Forward (Vf) (Max) @ If	530mV @ 300mA
Voltage - DC Reverse (Vr) (Max)	30V	Supplier Device Package	SOD-923
Speed	Fast Recovery = 200mA (Io)	Series	-
Packaging	Tape & Reel (TR)	Package / Case	SOD-923
Other Names	497-10980-2 BAT30LFILM-ND	Operating Temperature - Junction	150°C (Max)
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Diode Type	Schottky
Detailed Description	Diode Schottky 30V 300mA (DC) Surface Mount SOD-923	Current - Reverse Leakage @ Vr	5µA @ 30V
Current - Average Rectified (Io)	300mA (DC)	Capacitance @ Vr, F	22pF @ 0V, 1MHz
Base Part Number	BAT30L
