Home > Products > Discrete Semiconductor Products > Diodes - Rectifiers - Arrays > BAS69-09P6FILM

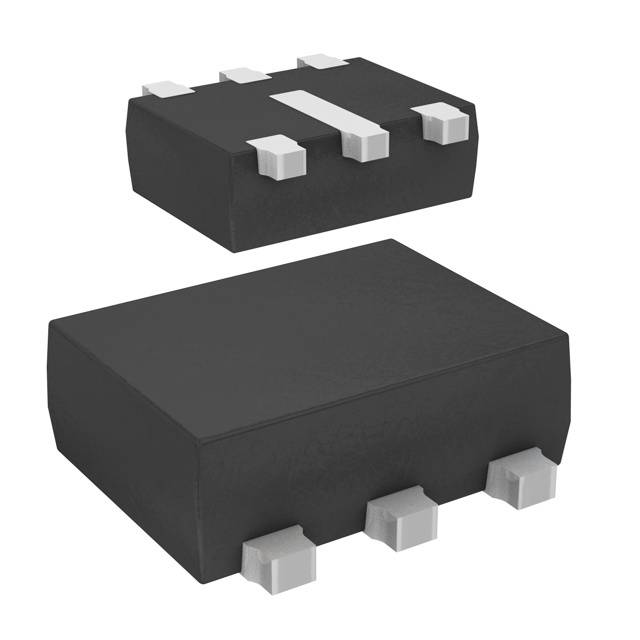

BAS69-09P6FILM

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy BAS69-09P6FILM with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	BAS69-09P6FILM
Manufacturer	STMicroelectronics
Description	DIODE ARRAY SCHOTTKY 15V SOT666
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 135457 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$0.156

Product parameter
Data sheet

Product parameter

Part Number	BAS69-09P6FILM	Manufacturer	STMicroelectronics
Description	DIODE ARRAY SCHOTTKY 15V SOT666	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	135457 pcs	Data sheet	BAS69
Category	Discrete Semiconductor Products	Voltage - Forward (Vf) (Max) @ If	570mV @ 10mA
Voltage - DC Reverse (Vr) (Max)	15V	Supplier Device Package	SOT-666
Speed	Small Signal =< 200mA (Io), Any Speed	Series	-
Packaging	Cut Tape (CT)	Package / Case	SOT-563, SOT-666
Other Names	497-5690-1 BAS6909P6FILM	Operating Temperature - Junction	150°C (Max)
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Diode Type	Schottky
Diode Configuration	2 Independent	Detailed Description	Diode Array 2 Independent Schottky 15V 10mA (DC) Surface Mount SOT-563, SOT-666
Current - Reverse Leakage @ Vr	230nA @ 15V	Current - Average Rectified (Io) (per Diode)	10mA (DC)
Base Part Number	BAS69-09
