Home > Products > Circuit Protection > Electrical, Specialty Fuses > JLLN-150

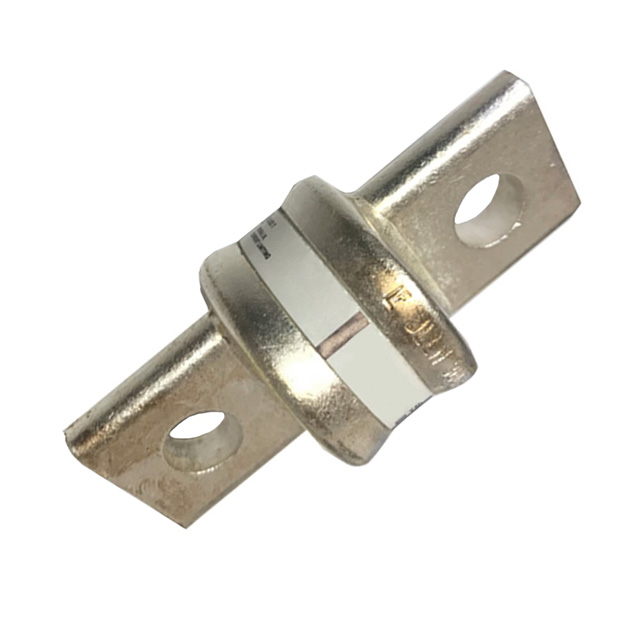

JLLN-150

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JLLN-150 with confidence from Components-World.HK, 1 Year Warranty

Dowload JLLN-150 Details in PDF

Request a Quote

Part Number	JLLN-150
Manufacturer	Riedon
Description	FUSE 300VAC CLASS T 150A CYLINDR
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 12625 pcs
Reference Price (In US Dollars)	1 pcs	5 pcs	10 pcs	50 pcs
	$6.167	$5.692	$5.218	$4.506
	$3.795	$3.558	$3.202	$3.083

Product parameter
Data sheet

Product parameter

Part Number	JLLN-150	Manufacturer	Riedon
Description	FUSE 300VAC CLASS T 150A CYLINDR	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	12625 pcs	Data sheet	JLLN Series
Category	Circuit Protection	Voltage Rating - DC	125V
Voltage Rating - AC	300V	Size / Dimension	1.062" Dia x 0.830" L (27.00mm x 21.10mm)
Series	JLLN	Response Time	Fast
Packaging	-	Package / Case	Cartridge, Non-Standard
Other Names	696-1825	Operating Temperature	-
Mounting Type	Bolt Mount	Moisture Sensitivity Level (MSL)	Not Applicable
Manufacturer Standard Lead Time	6 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Fuse Type	Cartridge	Features	-
Current Rating	150A	Class	T
Breaking Capacity @ Rated Voltage	200kA AC, 20kA DC	Approvals	CSA, UL
Applications	Electrical, Industrial
