CHR0805H-100KJ8

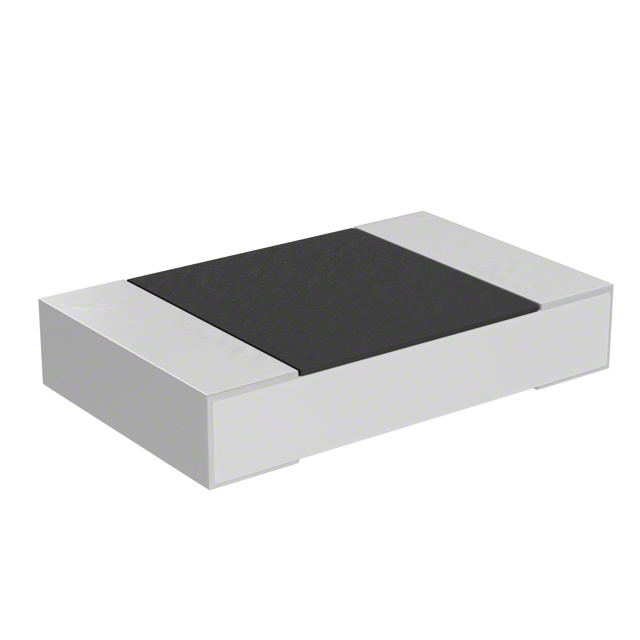

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CHR0805H-100KJ8 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CHR0805H-100KJ8 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CHR0805H-100KJ8 |
|---|---|
| Manufacturer | Riedon |
| Description | RES SMD 100K OHM 5% 1/8W 0805 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 250 pcs | 500 pcs | 750 pcs | 1250 pcs | 2500 pcs |
|---|---|---|---|---|---|
| $0.333 | $0.28 | $0.254 | $0.233 | $0.231 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | CHR0805H-100KJ8 | Manufacturer | Riedon |
|---|---|---|---|
| Description | RES SMD 100K OHM 5% 1/8W 0805 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 101748 pcs | Data sheet | Resistor Technology BrochureCHR Series |
| Category | Resistors | Tolerance | ±5% |
| Temperature Coefficient | ±100ppm/°C | Supplier Device Package | 0805 |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) | Series | CHR |
| Resistance | 100 kOhms | Power (Watts) | 0.125W, 1/8W |
| Packaging | Tape & Reel (TR) | Package / Case | 0805 (2012 Metric) |
| Other Names | 696-1604-2 | Operating Temperature | -55°C ~ 300°C |
| Number of Terminations | 2 | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 15 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height - Seated (Max) | 0.022" (0.55mm) | Features | Non-Magnetic |
| Failure Rate | - | Detailed Description | 100 kOhms ±5% 0.125W, 1/8W Chip Resistor 0805 (2012 Metric) Non-Magnetic Thick Film |
| Composition | Thick Film |
